Slab Start Macisa Ladder DWG Detail for AutoCAD

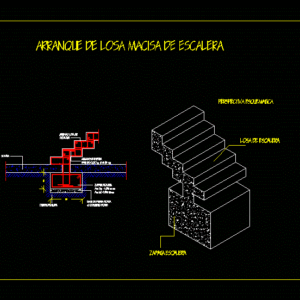

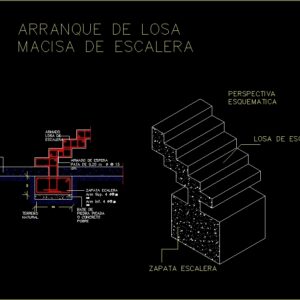

Detail on the start of a shoe reinforced concrete staircase; detail of reinforcing steel and isometry.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

sill, Armed waiting leg of cm, Armed ladder slab, Zapata ecalera arm sup. Cm arm inf. Cm, Poor concrete base, natural terrain, Schematic perspective, Stairway slab, Stair shoe, Step ladder start

Raw text data extracted from CAD file:

0,4 0,8 SOLERA ARMADO DE ESPERA PATA DE 0.20 m d @ 15 cm ARMADO LOSA DE ESCALERA ZAPATA ECALERA Arm Sup. 4 d@\H0.65385x; 20 cm Arm Inf. 4 d@\H0.65385x; 20 cm BASE DE PIEDRA PICADA O CONCRETO POBRE TERRENO NATURAL 5 PERSPECTIVA ESQUEMATICA LOSA DE ESCALERA ZAPATA ESCALERA ARRANQUE DE LOSA MACISA DE ESCALERA 5

Language	Spanish
Drawing Type	Detail
Category	Stairways
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, concrete, degrau, DETAIL, DWG, échelle, escada, escalier, étape, isometry, ladder, leiter, reinforced, reinforcing, shoe, slab, staircase, stairway, start, steel, step, stufen, treppe, treppen
