Sliding Walls And Guardhouse DWG Full Project for AutoCAD

Sliding Walls And Guardhouse DWG Full Project for AutoCAD

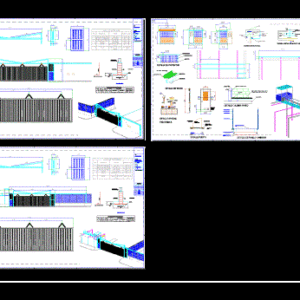

This is a project to create metal fences on the perimeter of an industrial plant developed in structural tubes with a single beam aerea rail and guardhouse in metal and clay block resting on an existing structure

Drawing labels, details, and other text information extracted from the CAD file (Translated from Catalan):

scale:, format:, description:, title:, planos, review:, approve:, description, plane, observations, reference, design, name, date, signature, rev.,, drawing:, responsible:, street closing , detail of porton this water channel, indicated, m.noguera, j.abunassar, detail of west gate, base plate, column support, pedestal cxd, riostra beam, shoe, reinforcement shoe, elevation, pedestal reinforcement, description , type, pedestal, esp, prof., shoe reinforcement, pedestal reinforcement, main, stirrups, axb, material list, item, description, material, specification, moving rail, columns supports, trolley, irak ingersol ran, section, anchorage, frame, grid of, aluminum, lam frame, metal bent, sheet, wood sheet, entangled, detail, sliding window union structure, sale in sliding panels, metal, bent sheet, profile, screw for, control, monitoring cabin, construction details, detail of walkway corridor, ipa asphalt tiles, machimbrado pvc, roof detail, ground, neutral bar, lighting, outlet, reserve, opening and closing motor, control panel motor and cabin, circular surface luminaire, electric panel, double pole, surface, white light, door, columns, metal angle, finishing locked work two-sided clean, existing beam, steel slab , detail window, panoramic, detail door, detail column wall, electrical distribution, detail of protector

Raw text data extracted from CAD file:

N°. de plano: Escala: Formato: Descripción: Título: P L A N O S D E REVISO : APROBO : D E S C R I P C I Ó N PLANO 4 3 4 3 2 1 A 2 B 1 A B O B S E R V A C I O N E S R E F E R E N C I A DISEÑO NOMBRE FECHA FIRMA FIRMA FIRMA Rev.: DIBUJO : FIRMA RESPONSABLE : CERRAMIENTO CALLE DETALLE DE PORTON ESTE CANAL DE AGUA INDICADA A1 CIVIL-001VEN016 A1 20/01/2016 M.Noguera 12,7 6,00 1,00 5 1,28 5 5 5 1,00 5 5 5 5 5 5 13,00 0,15 5 5 12,50 5 5 5,70 4,50 30/01/2016 M.Noguera 02/02/2016 J.Abunassar CERRAMIENTO CALLE DETALLE DE PORTON OESTE INDICADA A1 CIVIL-002VEN016 A1 20/01/2016 M.Noguera 5 6,00 5 2.199999999999999 5 0.9199999999999995 5 0.8999999999999997 5 0.4199999999999987 0.1799999999999999 0.1599999999999999 3.5 4.749999999999999 5 5 0,15 30/01/2016 M.Noguera 02/02/2016 J.Abunassar 5,70 3,2 0,9 2,50 0,55 8,42 0,25 12,7 6,00 1,00 2,2 1,28 0,92 0,25 0,9 1,00 0,42 0,18 0,16 3,5 4,75 4,75 13,00 0,15 26,2 1,53 12,50 1,53 10,7 5,70 4,50 5 0.07 5 5 PLANCHA BASE DE APOYO DE COLUMNAS PEDESTAL CxD VIGA DE RIOSTRA ZAPATA REFUERZO ZAPATA .20 h(variable) 2 E L E V A C I O N REFUERZO PEDESTAL 2 DESCRIP TIPO ZAPATA PEDESTAL ESP. PROF. REFUERZO DE ZAPATAS (EN DIRECCION A) (EN DIRECCION B) A B C D E H CUADRO DE FUNDACIONES ( Rs = 1.00 kg/cm2) F 1.20 1.20 0.50 0.50 0.30 1.50 0.10 0.10 9 d 3/8" x 1.30 0.10 0.10 9 d 3/8" x 1.30 REFUERZO DE PEDESTALES PRINCIPAL ESTRIBOS 4 d 1/2" x 1.50m 4 d 5/8" x 1.50m 1 d 3/8" x 1.80m@ 20cm. E 0.07 .10 A x B LISTA DE MATERIALES ITEM DESCRIPCION MATERIAL ESPECIFICACION 1 RIEL DE TRASLADO HEA 160 ASTM A36 2 COLUMNAS SOPORTES ECO 120X120 ASTM A36 3 VIGAS DE AMARRE ECO 120X60 ASTM A36 4 PORTON ECO 120X60 ASTM A36 5 PORTON CARPINTERIA 2X1-1/2" e: 1,1 ASTM A36 6 TROLLEY TROLLEY METALICO 500Kg IRAK Ingersol ran 4,75 0,15 LISTA DE MATERIALES ITEM DESCRIPCION MATERIAL ESPECIFICACION 1 RIEL DE TRASLADO HEA 160 ASTM A36 2 COLUMNAS SOPORTES ECO 120X120 ASTM A36 3 VIGAS DE AMARRE ECO 120X60 ASTM A36 4 PORTON ECO 120X60 ASTM A36 5 PORTON CARPINTERIA 2X1-1/2" e: 1,1 ASTM A36 6 TROLLEY TROLLEY METALICO 500Kg IRAK Ingersol ran 5,70 2100 830 430 150 SECCION ESC. 1:20 K ANCLAJE DEL MARCO REJILLA DE ALUMINIO DE 14"x6" K K' MARCO DE LAM. METALICA DOBLADA CAL. 16 LAMINA DE VIDRIO DE 4mm HOJA DE MADERA ENTAMBORADA 3 BISAGRAS DE 4" 4.726731951650436 4.726731951650436 4.726731951650436 210 4.726731951650436 800 SECCION B DETALLE 1 1 ESTRUCTURA DE UNION DE VENTANA CORREDIZA VENTANA PANELES CORREDIZOS VIDRIO 6 mm METAL 1cm x 1cm LAMINA DOBLADA PERFIL DE TORNILLO PARA LAMINA DE 2,13 2,5 1,5 2,5 1.00 1.40 2,32 1,00 1.20 1.00 1,02 2,52 2,06 0,8 800 210 0,15 X/2 X 2,9 S CONTROL 5 CABINA DE VIGILANCIA DETALLES CONSTRUCCTIVOS 1:50 A2 EST-001VEN016 A2 30/01/2016 M.Noguera TUBO RECTAGULAR ECO 100X100 \A1;50 LAMINA METALICA ESTRIADA 6mm DETALLE DE PASILLO CAMINERIA TUBO ASTM A53 REDONDO 1-1/2" BARRA REDONDA LISAd 20 mm TUBO ASTM A53 REDONDO 1-1/4" BARRA REDONDA LISAd 20 mm TUBO RECTAGULAR ECO 120X60 IPA TEJAS ASFÁLTICAS VIGA COLUMNA 90X90 MACHIMBRADO PVC VIGA SOPORTE 80X40 DETALLE DE TECHO 5 5 2,50 0,55 TIERRA BARRA DE NEUTRO 1 N 3 1x15 2C THWN # 10 2 x 60 Fi 100 2 4 ILUMINACION 3/4" diametro aluminio T 1x15 2x15 TOMACORRIENTE 5 6 RESERVA MOTOR DE APERTURA Y CIERRE RESERVA TABLERO CONTROL DE MOTOR Y CABINA LUMINARIA SUPERFICIAL CIRCULAR TABLERO ELECTRICO APAGADOR 1X15 TOMA 110V 1X15 DOBLE POLO SUPERFICIAL LUZ BLANCA 5 AL PORTON 30/01/2016 M.Noguera COLUMNAS Angulo Metalico Alas iguales 30X3 TUBERIA ECO CUADRADA 90X90 PARED BLOQUE DE TRINCOTE ARCILLA LISO 15 ACABADO TRABADO OBRA LIMPIA DOS CARAS VIGA EXISTENTE LOSA ACERO DETALLE VENTANA PANORAMICA DETALLE PUERTA DETALLE COLUMNA PARED 5 5 5 5 1.00 1.40 5 1,00 1.20 1.00 5 5 5 5 DISTRIBUCION ELECTRICA DETALLE DE PROTECTOR BARRA METALICA LISA 1/2" PLETINA METALICA 3/4"X1/4" TUBO 3"X1"X1,1mm 5 X/2 X 5

Language	Other
Drawing Type	Full Project
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Aluminum, Steel, Wood, Other
Measurement Units	Metric
