Spiral DWG Elevation for AutoCAD

Spiral DWG Elevation for AutoCAD

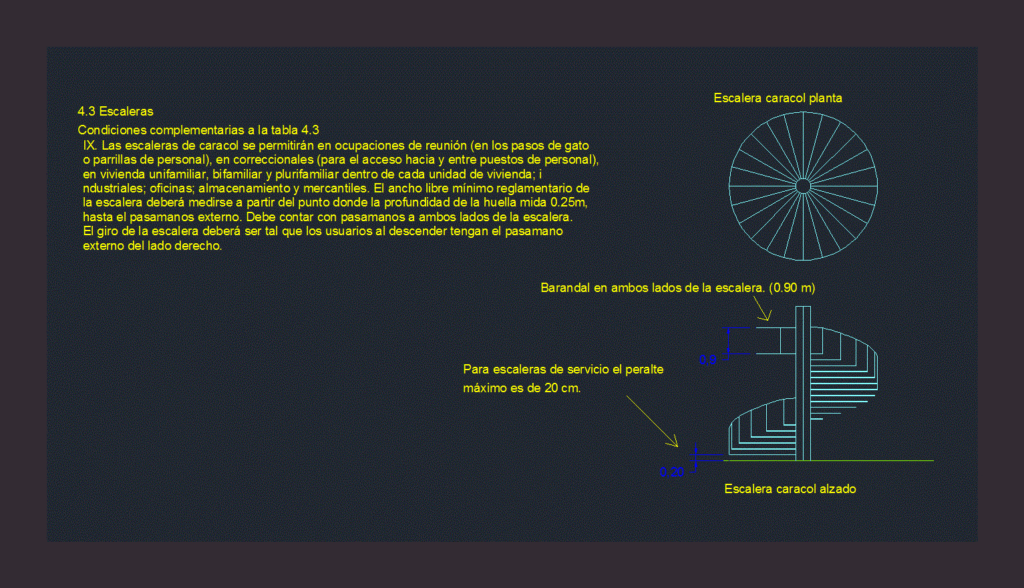

Spiral staircase ground elevation; with specification based on the Building Regulations of the Federal District

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

stairs, Additional conditions table, Spiral staircase plant, Spiral staircase, Railing on both sides of the staircase., For service stairs the cantilever, Maximum is cm., Ix. The spiral stairs will be allowed in meeting occupations the cat steps, Grills in corrections the access to between positions of, In multi-family housing within each unit of, Warehousing. The minimum regulatory free width of, The ladder shall be measured from the point where the depth of the footprint measures, Up to the external handrail. You must have handrails on both sides of the ladder., The turn of the ladder must be such that the users when descending have the handrail, The right side.

Raw text data extracted from CAD file:

0,20 0,9 4.3 Escaleras Condiciones complementarias a la tabla 4.3 Escalera caracol planta Escalera caracol alzado Barandal en ambos lados de la escalera. (0.90 m) Para escaleras de servicio el peralte máximo es de 20 cm. <>0 IX. Las escaleras de caracol se permitirán en ocupaciones de reunión (en los pasos de gato o parrillas de personal), en correccionales (para el acceso hacia y entre puestos de personal), en vivienda unifamiliar, bifamiliar y plurifamiliar dentro de cada unidad de vivienda; i ndustriales; oficinas; almacenamiento y mercantiles. El ancho libre mínimo reglamentario de la escalera deberá medirse a partir del punto donde la profundidad de la huella mida 0.25m, hasta el pasamanos externo. Debe contar con pasamanos a ambos lados de la escalera. El giro de la escalera deberá ser tal que los usuarios al descender tengan el pasamano externo del lado derecho. 5

Language	Spanish
Drawing Type	Elevation
Category	Stairways
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Deck / Patio, Car Parking Lot
Tags	autocad, based, building, degrau, district, DWG, échelle, elevation, escada, escalier, étape, federal, ground, ladder, leiter, regulations, specification, spiral, spiral staircase, staircase, stairway, step, stufen, treppe, treppen
