Stairs DWG Detail for AutoCAD

Stairs DWG Detail for AutoCAD

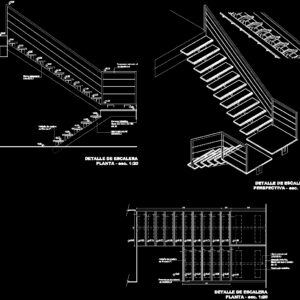

Plant; cutting and stair construction detail metal frame and wooden tracks

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Structural iron, Set screw, Metal sheet, Pinotea wood step, Structural handrail, Plant esc., Stairway detail, Structural iron, Set screw, Pinotea wood step, Structural iron, Structural handrail, Plant esc., Stairway detail, Prospect esc., Stairway detail

Raw text data extracted from CAD file:

\A1;1.00 \A1;0.98 \A1;0.26 \A1;2.62 \A1;1.32 5 5 5 5 5 +0,00 +0,17 +0,34 +0,51 +0,68 +0,85 +1.03 +1.20 +1.54 +1.71 +1.88 +2.05 +2.22 +2.38 +2.57 +2.74 +2.91 +3.08 +1.37 Hierro estructural 150x50x3.2 Mensula Metalica, fijada con taco y tornillo del 10 Planchuela metalica. Peldaño de madera de Pinotea 2". Pasamanos estructural de 50x50x1.8 PLANTA - esc. 1:20 DETALLE DE ESCALERA +1.54 +0.00 +0.17 +0.34 +0.51 +0.68 +0.85 +1.03 +1.71 +1.88 +2.05 +2.22 +2.38 +2.57 +2.74 +2.91 +3.08 +1.20 +2.10 +3.95 +1.37 Hierro estructural 150x50x3.2 Mensula Metalica, fijada con taco y tornillo del 10 Peldaño de madera de Pinotea 2". Hierro estructural 150x50x3.2 Pasamanos estructural de 50x50x1.8 PLANTA - esc. 1:20 DETALLE DE ESCALERA PERSPECTIVA - esc. 1:20 DETALLE DE ESCALERA

Language	Spanish
Drawing Type	Detail
Category	Stairways
Additional Screenshots
File Type	dwg
Materials	Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, construction, cutting, degrau, DETAIL, DWG, échelle, escada, escalier, étape, frame, ladder, leiter, metal, metal frame, plant, stair, staircase, stairs, stairway, step, stufen, tracks, treppe, treppen, wooden
