Star Wheel DWG Block for AutoCAD

Star Wheel DWG Block for AutoCAD

The string can transmit motion between parallel shafts. The simplest arrangement has led a drive shaft and rotating in the same direction, but can be arranged with more trees or do they turn in opposite directions

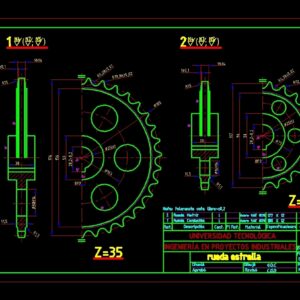

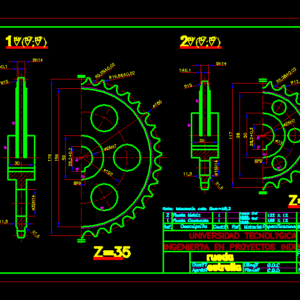

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

observations, mod :, designed, approved, revised, drafted, cgd, cant., technological university, engineering in industrial projects, ref., description, pl ref., material, specifications, ot :, star wheel, drive wheel, driven wheel , odc, ———–

Raw text data extracted from CAD file:

50 28,2+0,2 1±0,1 9h14 d25H7 30 28,2+0,2 50 1±0,1 9h14 d25H7 R19,86±0,02 30 d30H14 117 176 156 96 R5,28±0,02 R12,6±0,02 R1,5 R1,5 R5,28±0,02 Observaciones Escala 1:1 MOD: Nº 02 Diseñó Aprobó Revisó Dibujó C.G.D Cant. UNIVERSIDAD TECNOLÓGICA INGENIERÍA EN PROYECTOS INDUSTRIALES Ref. Descripción Pl Ref. Material Especificaciones O.T: Fecha 04/10/10 rueda estrella 2 1 Rueda Motriz Rueda Conducida 1 1 Acero SAE 1020 180 X 12 122 X 12 Acero SAE 1020 2 N4 ( ; N7 N5 ) 1 N4 ( ; N7 N5 ) 5 <>+0,2 1±0,1 9h14 d25H7 5 11,5 N7 8P9 N7 N7 <>+0,2 5 1±0,1 9h14 11,5 8P9 d25H7 <>±0,02 O.D.C 5 d30H14 R15 ----------- ----------- R15 5 5 \U+2205122 \U+2205180 d16H14 Z=35 Z=23 Nota: tolerancia cota libre=±0,2 5 5 d73 d103 N5 N5 N5 N7 N7 N7 N5 N5 N5 <>±0,02 <>±0,02 5 5 <>±0,02
