Steel DWG Block for AutoCAD

Steel DWG Block for AutoCAD

An exercise of steel

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

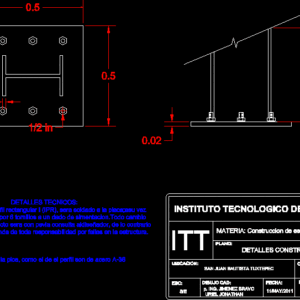

Matter: construction of steel structures, Technological Institute of Tuxtepec, itt, constructive details, flat:, Location:, esc:, CAD drawing:, date:, revised:, p. ing. jimenez bravo uriel jonathan, san juan bautista tuxtepec, Matter: construction of steel structures, technical details: in the case of rectangular profile will be welded the time the plate will be fastened by screws a die of simentacion.todo change made this project will be pevia consultation otherwise the designer disclaims any responsibility for faults in the structure., The material of the like of the profile are made of steel, dimensions:, meters

Raw text data extracted from CAD file:

\A1;0.5 \A1;0.5 \A1;0.02 \A1;0.015 MATERIA: Construccion de estructuras de acero \A1;1/2 in \A1;2 INSTITUTO TECNOLOGICO DE TUXTEPEC ITT DETALLES CONSTRUCTIVOS PLANO: UBICACION: ESC: DIBUJO CAD: FECHA: REVISO: S/E p. ING. JIMENEZ BRAVO URIEL JONATHAN 11/MAY/2011 SAN JUAN BAUTISTA TUXTEPEC MATERIA: Construccion de estructuras de acero 5 5 5 5 DETALLES TECNICOS: En el caso de del perfil rectangular I (IPR), sera soldado a la placa;asu vez la placa sera sujeta por 6 tornillos a un dado de simentacion.Todo cambio realizado a este proyecto sera con pevia consulta aldiseñador, de lo contrario el diseñador se deslinda de toda responsabilidad por fallas en la estructura. 1/2 in 2 El material de la plca, como el de el perfil son de acero A-36 COTAS: METROS

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Steel, Other
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, DWG, exercise, stahlrahmen, stahlträger, steel, steel beam, steel frame, structure en acier
