Steel Framing Details DWG Detail for AutoCAD

Steel Framing Details DWG Detail for AutoCAD

Steel framing Details

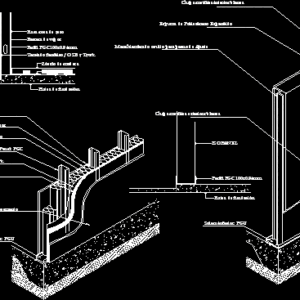

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

bottom hearth: pgu, wind water barrier: tyvek, Substrate: Multilaminated phenolic osb, expanded polystyrene, fiber cement sheet, finished floor level, foundation plate, profile, osb plywood tyvek, plaster rock plate, vapor barrier, finished floor level, wooden plinth, Panel stile: pgc, glass wool: thermal insulation, vapor barrier, plaster interior plasterboard, fiber cement panel, expanded polystyrene foam, white metal sheet metal, sheet metal exterior white, hidden manchiembrado for adjustment bolt, bottom hearth: pgu, foundation plate, profile, isopanel

Raw text data extracted from CAD file:

Solera inferior: PGU Barrera de agua y viento: Tyvek Substrato: multilaminado fenolico / OSB de e=10mm Poliestireno expandido Placa de Fibrocemento Nivel de piso terminado Platea de fundación Perfil PGC100x0.94mm Terciado fenólico / OSB y Tyvek Placa roca de yeso Barrera de vapor -0.05 ±0.00 Nivel de piso terminado Zócalo de madera Montante de Panel: PGC Lana de Vidrio: aislante térmico Barrera de vapor Placa interior de roca de yeso e=12.5mm Panel de fibrocemento Espuma de Poliestireno Expandido Chapa metálica interior blanca Chapa metálica exteriorr blanca Manchiembrado oculto para perno de Ajuste Solera inferior: PGU Platea de fundación Perfil PGC100x0.94mm ISOPANEL

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Glass, Steel, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, DETAIL, details, DWG, framing, stahlrahmen, stahlträger, steel, steel beam, steel frame, structure en acier
