Steel Structure DWG Detail for AutoCAD

Steel Structure DWG Detail for AutoCAD

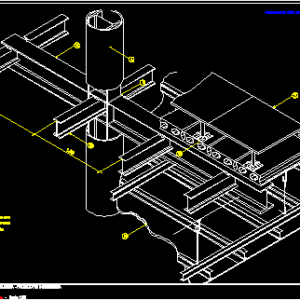

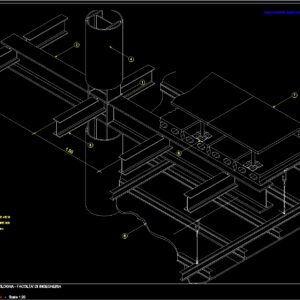

Detail armed entresol with steel structure and floating step

Drawing labels, details, and other text information extracted from the CAD file (Translated from Italian):

deck, floor, Ipe secondary beam, He is the main beam, Pillar he, support, Pillar coating, Structural mesh assonometry, countertop, University of engineering in bologna faculty, table, Title: special steel scale structure

Raw text data extracted from CAD file:

1.50 1 2 3 5 4 6 7 Impalcato 8 5 Pavimento 7 6 4 3 2 1 Trave secondaria IPE 300 Trave principale HE 450 B Pilastro HE 450 B Appoggio Rivestimento pilastro Assonometria della maglia strutturale 2.00 Controsoffitto 8 UNIVERSITA' DEGLI STUDI DI BOLOGNA - FACOLTA' DI INGEGNERIA Tavola 12 Titolo: Particolari struttura in acciaio - Scala 1:20

Language	N/A
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Steel
Measurement Units
Footprint Area
Building Features	Deck / Patio
Tags	armed, autocad, DETAIL, DWG, entresol, floating, stahlrahmen, stahlträger, steel, steel beam, steel frame, step, structure, structure en acier
