Steel Structures DWG Block for AutoCAD

Steel Structures DWG Block for AutoCAD

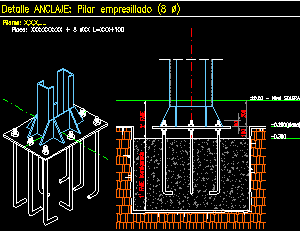

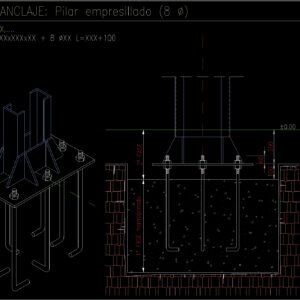

Foundation with 8 bars anchorage

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

phase, Concreted phase, Anchorage detail, Plate: xxxxxxxxxx dxx, Pillars:, Level

Raw text data extracted from CAD file:

\A1;2ª FASE \A1;1ª FASE hormigonado 0.0 0.0 Detalle ANCLAJE: Pilar empresillado (8 d) Placa: XXXxXXXxXX + 8 dXX L=XXX+100 Pilares: X,X,X,.... -0.200(placa) -0.300 60 200 100 ±0.00 - Nivel SOLERA

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	anchorage, autocad, bars, block, DWG, FOUNDATION, stahlrahmen, stahlträger, steel, steel beam, steel frame, structure en acier, structures
