SubmuraciÓN With Concrete DWG Block for AutoCAD

SubmuraciÓN With Concrete DWG Block for AutoCAD

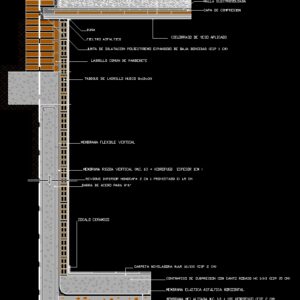

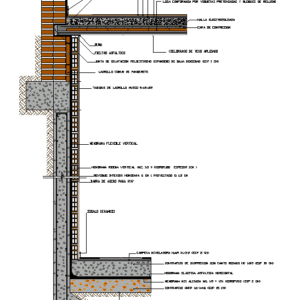

Submuración concrete; with hollow brick wall; subfloor underpressure

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

leveling folder m.a.r, common brick of tambourine, vertical flexible membrane, rigid vertical membrane hydrophobic thickness, sub-subframe with rolled hc, hhrp underfloor, shoe exentric, hollow brick partition, expansion joint low density expanded polystyrene, expansion chamber, concrete subfloor lightened with spheres of, natural terrain, smoothed mci membrane m.c. waterproof, horizontal asphalt elastic membrane, ceramic tile, gypsum ceiling applied, detail submission with, girlfriend, polyethylene film, thin layer adhesive mixture, ceramic flooring cm, leveling folder m.a.r, asphalt felt, vertical rigid membrane, plaster monolayer interior in, steel bar for, slab consisting of prestressed beams filling blocks, welded Mesh, monolayer interior plaster, plaster inside monolayer in projected e: cm, polystyrene exp, klaucol type, ceramic base, compression layer

Raw text data extracted from CAD file:

CARPETA NIVELADORA M.A.R 1:1/2:3 (ESP 2 CM) LADRILLO COMUN DE PANDERETE MEMBRANA FLEXIBLE VERTICAL MEMBRANA RIGIDA VERTICAL (M.C. 1:3 + HIDROFUGO ESPESOR 1CM ) CONTRAPISO DE SUBPRESION CON CANTO RODADO HC 1:3:3 (ESP 15 CM) CONTRAPISO HHRP 1:1/4:4:8 (ESP 15 CM) ZAPATA EXENTRICA DE H°A° (H.C. 1:2:4) TABIQUE DE LADRILLO HUECO 8x18x33 JUNTA DE DILATACION POLIESTIRENO EXPANDIDO DE BAJA DENSIDAD (ESP 1 CM) CAMARA DE EXPANSION CONTRAPISO DE HORMIGON ALIVIANADO CON ESFERAS DE TERRENO NATURAL MEMBRANA MCI ALISADA M.C. 1:3 + 10% HIDROFUGO (ESP 2 CM) MEMBRANA ELÁSTICA ASFÁLTICA HORIZONTAL ZOCALO CERAMICO CIELORRASO DE YESO APLICADO DETALLE SUBMURACIÓN CON H°A° BUÑA FILM DE POLIETILENO (ESP 200 MICRONES) MEZCLA ADHESIVA DE CAPA DELGADA (ESP 0.8 CM) SOLADO CERÁMICO 30X30 CM (ESP 0.8 CM) CARPETA NIVELADORA M.A.R 1:1/2:3 (ESP 2 CM) FIELTRO ASFALTICO MEMBRANA RIGIDA VERTICAL REVOQUE INTERIOR MONOCAPA 2 EN 1 BARRA DE ACERO PARA H°A° LOSA CONFORMADA POR VIGUETAS PRETENSADAS Y BLOQUES DE RELLENO MALLA ELECTROSOLDADA REVOQUE INTERIOR MONOCAPA REVOQUE INTERIOR MONOCAPA REVOQUE INTERIOR MONOCAPA 2 EN 1 PROYECTADO E: 1.5 CM POLIESTIRENO EXP (ESP 7 CM) TIPO KLAUCOL ZÓCALO CERÁMICO CAPA DE COMPRESIÓN

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, brick, concrete, construction details section, cut construction details, DWG, hollow, submuracion, wall
