Suspended Ceiling Removable Tray DWG Detail for AutoCAD

Suspended Ceiling Removable Tray DWG Detail for AutoCAD

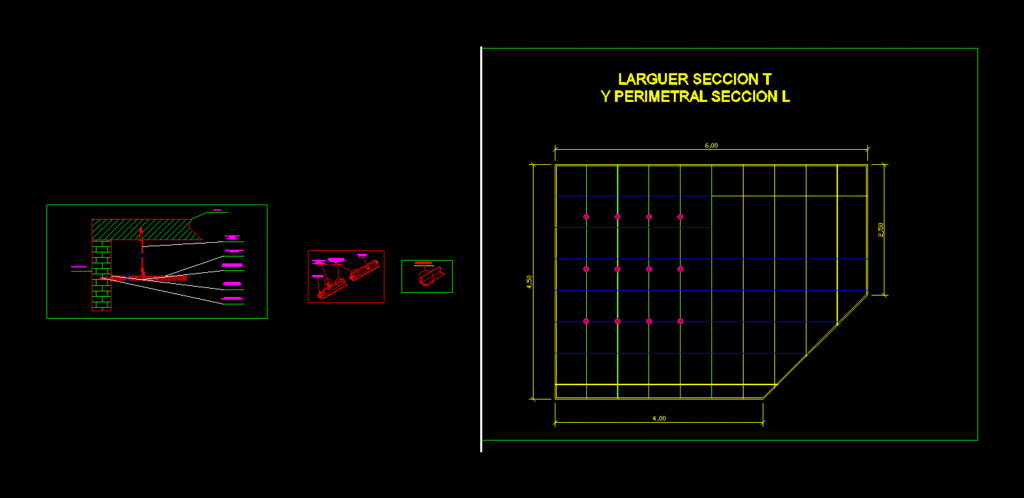

Details removable tray suspended ceiling slab fixing H º A º and distribution of plaques. stringer detail and all its parts.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

detail, galvanized wire to hang on ceiling, high-beam inverted section rail. long, coupling type, transom housing, perimeter of long section, durlock board, larguer section perimeter section, brick masonry, slab, plate acoustic thickness gypsum board, galvanized wire to hang on ceiling, high-beam inverted cross-section, perimeter of long section, self-drilling screw for slab wall fixing, details of suspended ceilings removable in tray

Raw text data extracted from CAD file:

6,00 2,50 4,50 4,00 DETALLE N° 2 ALAMBRE GALVANIZADO 14MM PARA CUELGUE EN TECHO LARGUERO DE SECCION "T" INVERTIDA DE 24MM DE ANCHO Y 26MM DE ALTO. LARGO 3.66 M ACOPLE TIPO "CLIC" ALOJAMIENTO DE TRAVESAÑO PERIMETRAL DE SECCION "L" DE 20MM X 20MM. LARGO 3.05M PLACA DURLOCK 5 5 5 5 LARGUER SECCION T Y PERIMETRAL SECCION L MAMPOSTERIA DE LADRILLO LOSA DE Hº Aº PLACA ROCA DE YESO ACUSTICA 14MM ESPESOR ALAMBRE GALVANIZADO 14MM PARA CUELGUE EN TECHO LARGUERO SECCION T INVERTIDA DE 24MM DE ANCHO Y 26MM DE ALTO PERIMETRAL DE SECCION L 20MM X 20MM Y 3.05M DE LARGO TORNILLO AUTOPERFORANTE Nª40 PARA FIJACION EN PARED Y LOSA DETALLES CONSTRUCTIVOS DE CIELORRASO SUSPENDIDO DESMONTABLE EN BANDEJA

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Masonry
Measurement Units
Footprint Area
Building Features
Tags	abgehängten decken, autocad, ceiling, DETAIL, details, distribution, DWG, fixing, plafonds suspendus, removable, slab, suspended, suspended ceiling, suspenden ceilings, tray
