Symbology Hydraulics DWG Block for AutoCAD

Symbology Hydraulics DWG Block for AutoCAD

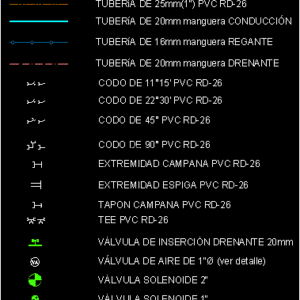

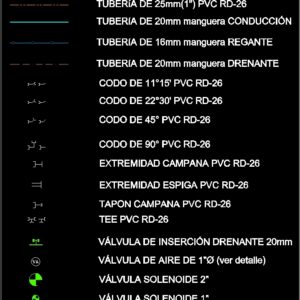

Symbols for hydraulic network

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Pvc pipe, Pvc elbow, Pvc bell tip, Pvc spike tip, Cruise number pvc, Pvc bell plug, Tee pvc, solenoid valve, Of stretch, diameter, length, Symbology:, Air valve, Pvc pipe, Conduit hose pipe, Watering hose pipe, solenoid valve, Drain hose pipe, Line of treated water, Drain plug valve

Raw text data extracted from CAD file:

TUBERíA DE 40mm(1 1/2") PVC RD-26 TUBERíA DE 50mm(2") PVC RD-26 CODO DE 11°15' PVC RD-26 CODO DE 22°30' PVC RD-26 CODO DE 45° PVC RD-26 CODO DE 90° PVC RD-26 EXTREMIDAD CAMPANA PVC RD-26 EXTREMIDAD ESPIGA PVC RD-26 NUMERO DE CRUCERO PVC RD-26 TAPON CAMPANA PVC RD-26 TEE PVC RD-26 5 VÁLVULA SOLENOIDE 2" N° DE TRAMO T 13 DÍAMETRO LONGITUD SIMBOLOGIA: VÁLVULA DE AIRE DE 1"d (ver detalle) TUBERíA DE 32mm(1 1/4") PVC RD-26 TUBERíA DE 25mm(1") PVC RD-26 TUBERíA DE 20mm manguera CONDUCCIÓN TUBERíA DE 16mm manguera REGANTE VÁLVULA SOLENOIDE 1" TUBERíA DE 20mm manguera DRENANTE LINEA CONDUCCIÓN DE AGUA TRATADA L AT 146 m - 3" VÁLVULA DE INSERCIÓN DRENANTE 20mm 0

Language	Spanish
Drawing Type	Block
Category	Bathroom, Plumbing & Pipe Fittings
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, DWG, hydraulic, hydraulic symbolism, hydraulics, hydraulische symbolik, network, simbolismo hidráulica, symbolisme hydraulique, symbology, symbols
