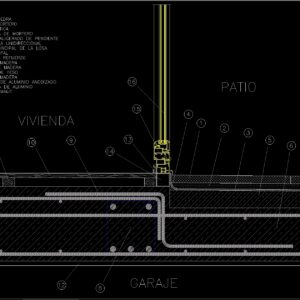

Detail terrace over garage – Connection patio with external floor – Technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

stone, Mortar, Asphaltic, Mortar cane, Lightened slope, Solid unidirectional, Main of the slab, principal, of wood, Of plaster, of wood, Anodized aluminum, of aluminum, Climalit, yard, living place, garage

Raw text data extracted from CAD file:

5.00 -15.12090856969871 1 -BALDOSA PIEDRA 2 -CAPA DE MORTERO 3 -TELA ASFALTICA 4 -MEDIA CAÑA DE MORTERO 5 -HORMIGON ALIGERADO DE PENDIENTE 6 -LOSA MACIZA UNIDIRECCIONAL 7 -ARMADO PRINCIPAL DE LA LOSA 8 -VIGA PRINCIPAL 9 -ARMADO DE REFUERZ0 10-TARIMA DE MADERA 11-RASTREL DE MADERA 12-ENLUCIDO DE YESO 13-LISTON DE MADERA 14-PREMARCO DE ALUMINIO ANODIZADO 15-CARPINTERIA DE ALUMINIO 16-CRISTAL CLIMALIT 4 1 2 3 5 6 7 9 10 8 11 16 15 13 14 12 PATIO VIVIENDA GARAJE
