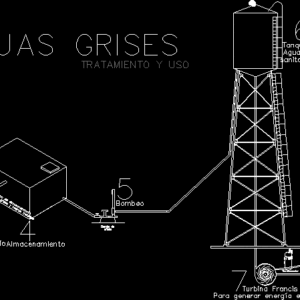

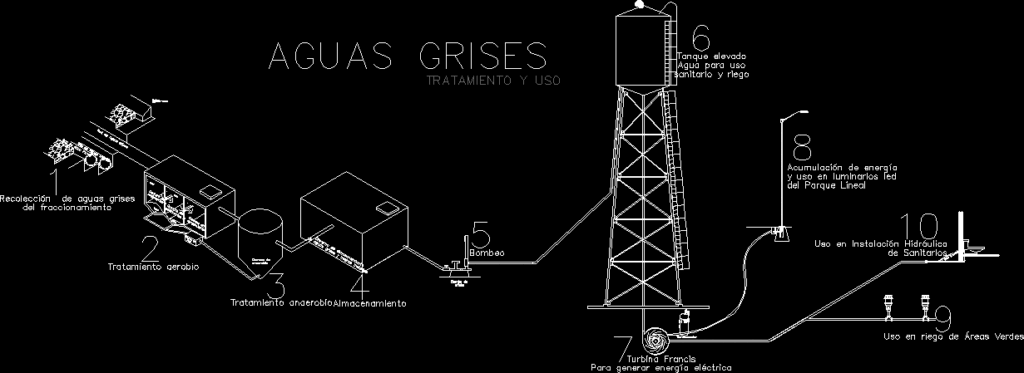

TREATMENT GRAY WATERSAND AND RE- USE TO GENERATE ELECTRICITY AND TO FEED HEALTH SYSTEMS AND IRRIGATION AND FOR FRACTIONATION SUSTAINABLE

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Cm., mortar, Sewer network, Rainwater network, Gray water network, cream, Sludges, cream, Mud log, Sediment chamber, Air chamber, Sediment chamber, Anaerobic chamber, Treated gray gray water storage cistern, Water pump, Collection of gray water from the fractionation, Aerobic treatment, Anaerobic treatment, storage, pumping, Elevated tank water for sanitary use watering, Turbine to generate electricity, Accumulation of energy use in linear park led luminaires, Use in irrigation of green areas, Use in hydraulic installation of toilets, Municipal network, Treatment use, Grey waters, transformer

Raw text data extracted from CAD file:

15 cm. 15 cm. Mortero cemento-arena 1:5 Red de Aguas Negras Red de Agua Pluvial Red de Aguas Grises nata lodos lodos nata Registro de lodos 1 2 Camara de sedimentos 1 Camara de aereamiento Camara de sedimentos 2 Camara de anaerobia Cisrerna de almacenamiento de aguas grises y negras tratadas Bomba de ariete Recolección de aguas grises del fraccionamiento Tratamiento aerobio 3 Tratamiento anaerobio 4 Almacenamiento 5 Bombeo 6 Tanque elevado Agua para uso sanitario y riego 7 Turbina Francis Para generar energía eléctrica 8 Acumulación de energía y uso en luminarios led del Parque Lineal 9 Uso en riego de Áreas Verdes 10 Uso en Instalación Hidráulica de Sanitarios Red municipal TRATAMIENTO Y USO AGUAS GRISES Transformador

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
