Turbine Housing Structure DWG Block for AutoCAD

Turbine Housing Structure DWG Block for AutoCAD

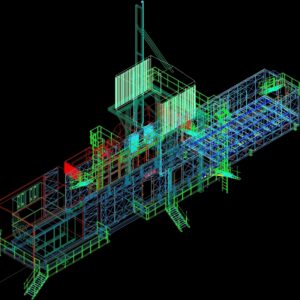

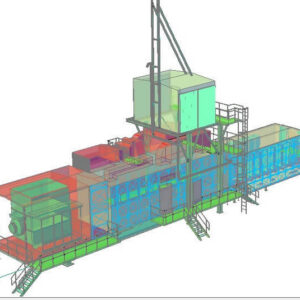

TURBINE STRUCTURE

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

vent fuel, purge, vent, vent lubric oil, enter. agua fríom, exit agua fríom, drain oil lubric., drain air ventilation, gas outlet, drain water, purge air vent., purge air cooling, drain water, drainage lubricant oil, center, entry air instrumentation, entry fuel, drainage tq lube oil, fuel sampling, tq fuel drainage, drainage external fuel unit, liquid fuel ventilation, return purified oil, suction purified oil, filling oil tq lubrication

Raw text data extracted from CAD file:

0,0,0 0,0,0 0,0,0 XX MBV10/15 SDB10/05 SDB10/10 SDB10/15 SDB10/30 MBP10/05 VENT. COMBUSTIBLE MBH20/05 PURGA AIRE VENT. MBV10/10 VENT. ACEITE LUBRIC PGA10/10 ENTRAD. AGUA ENFRIAM PGA15/10 SALIDA AGUA ENFRIAM MBV10/35 DRENAJE ACEITE LUBRIC. MBH10/15 DRENAJE AIRE VENTILACION MBH10/20 DRENAJE AIRE VENTILACION MBB10/05 SALIDA DE GASES SDB50/10 DRENAJE AGUA MBH20/20 PURGA DE AIRE VENT. MBH20/10 PURGA DE AIRE ENFRIAMIENTO SDB50/05 DRENAJE DE AGUA MBV10/40 DRENAJE DE ACEITE LUBRICANTE 0,0,0 CENTRO QFA10/10 ENTRADA AIRE INSTRUMENTACION MBN10/05 ENTRADA COMBUSTIBLE MBV10/05 DRENAJE TQ ACEITE LUBIRC. MBN10/20 MUESTREO COMBUSTIBLE MBN10/15 DRENAJE TQ COMBUSTIBLE MBP05/05 ENTRADA COMBUS. UNIDAD EXTERNA 1 MBP05/10 DRENAJE UNIDAD EXTERNA COMBUSTIBLE MBN10/10 VENTILACION COMBUSTIBLE LIQUIDO MBV10/20 RETORNO ACEITE PURIFICADO MBV10/15 SUCCION ACEITE PURIFICADO MBV10/25 LLENADO DE TQ ACEITE LUBRICACION SDB10/25 LLENADO DETERGENTE TQ 2 SDB10/20 LLENADO DETERGENTE TQ 1

Language	Spanish
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	aspirador de pó, aspirateur, autocad, block, bohrmaschine, compresseur, compressor, drill, DWG, guincho, Housing, kompressor, machine, machine de forage, machinery, máqu, metal structures, press, rack, staubsauger, structure, treuil, turbine, vacuum, winch, winde
