Two-Story Vietnamese Residential Floor Plans with Roof System Detail

Project Overview

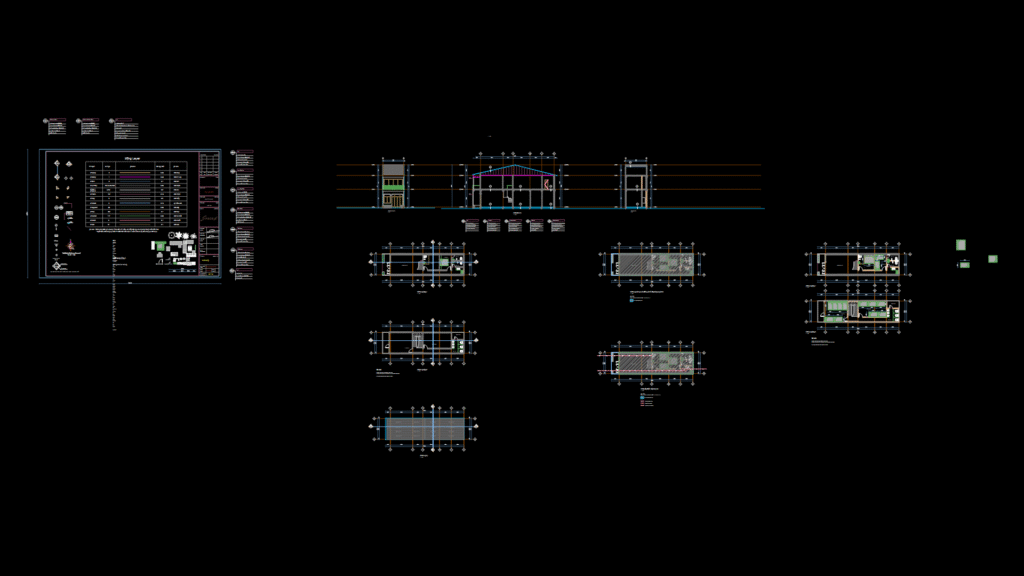

This comprehensive architectural drawing set depicts a two-story Vietnamese residential house located in Dong Van, Ha Giang. The package includes detailed floor plans, sections, elevations, adn technical specifications focusing on traditional Vietnamese architectural elements with modern construction methods.

Floor Layout Analysis:
The ground floor features a spacious living room, multiple bedrooms, and bathrooms with ceramic tile flooring (800x800mm). The second floor contains additional bedrooms, bathrooms, and a drying yard. Both floors emphasize cross-ventilation and functional zoning typical of Vietnamese residential architecture.

Structural & Material Specifications

– Foundation: Reinforced concrete base with 100mm thick concrete (grade 150) over compacted sand
– Flooring: 600x600mm ceramic tiles throughout with anti-slip variants in bathrooms
– Wall Construction: Load-bearing walls with plaster finish and white paint (3 coats)
– Roof System: Metal box beam structure (40x80mm) supporting metal-backed insulated roofing with ceramic tiles
– Staircase: Black granite treads on reinforced concrete with decorative wooden railings

The design incorporates traditional Vietnamese timber columns in select areas, creating a cultural connection while maintaining modern construction standards. The utilities layout demonstrates integrated electrical, water supply, and drainage systems thoughtfully positioned for maintenance accessibility.
