Urinals DWG Detail for AutoCAD

Urinals DWG Detail for AutoCAD

Urinals – Details –

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

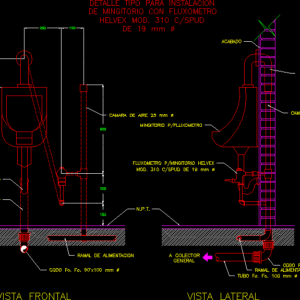

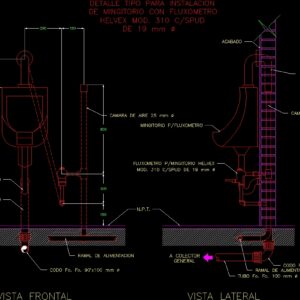

Helvex mod., Of urinal with flowmeter, Type detail for installation, Mm, manifold, general, Partition wall, finish, Air chamber mm, Helvex flowmeter, Urinal, Food branch, Elbow fo. Fo. Mm, Tube fo. Fo. Mm, Mod. Mm, Food branch, Elbow fo. Fo. Mm, Air chamber mm, front view, side view, Cespol mm, Copper mm, N.p.t.

Raw text data extracted from CAD file:

150 600 200 150 250 950 200 \A1;150 \A1;200 \A1;600 \A1;250 \A1;150 \A1;950 \A1;200 HELVEX MOD. 310 C/SPUD DE MINGITORIO CON FLUXOMETRO DETALLE TIPO PARA INSTALACION DE 19 mm d A COLECTOR GENERAL 150 200 600 250 150 MURO DE TABIQUE ACABADO CAMARA DE AIRE 25 mm d FLUXOMETRO P/MINGITORIO HELVEX MINGITORIO P/FLUXOMETRO RAMAL DE ALIMENTACION CODO Fo. Fo. 90°x100 mm d TUBO Fo. Fo. 100 mm d MOD. 310 C/SPUD DE 19 mm d RAMAL DE ALIMENTACION CODO Fo. Fo. 90°x100 mm d CAMARA DE AIRE 25 mm d VISTA FRONTAL VISTA LATERAL 950 200 CESPOL 38 mm d COBRE 50 mm d N.P.T.
