Wall Foundation Detail DWG Detail for AutoCAD

Wall Foundation Detail DWG Detail for AutoCAD

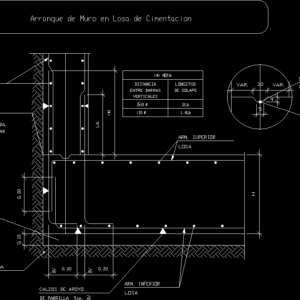

Wall foundation detail in flagstone

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

note:, distance, between bars, vertical, arm. lower, Start of wall in foundation slab, compacted base, cleaning, concrete, support chocks, grill, slab, rough, before concreting, cutting key, surface, arm. Wall, var., arm. higher, slab, length, overlap, var., of cutting, key detail, hydrophilic, cord

Raw text data extracted from CAD file:

(*) NOTA: DISTANCIA ENTRE BARRAS VERTICALES >10 d 10 d ARM. INFERIOR Arranque de Muro en Losa de Cimentacion BASE COMPACTADA 0.10 0.30 (ZAHORRAS) DE LIMPIEZA HORMIGON CALZOS DE APOYO DE PARRILLA 5cm. 0.20 0.20 LOSA RUGOSA Y HUMEDECIDA, ANTES DE HORMIGONAR LLAVE DE CORTANTE SUPERFICIE LIMPIA, ARM. MURO Lb (*) H VAR. ARM. SUPERIOR 2Lb 1.4Lb LOSA LONGITUD DE SOLAPE 5 VAR. 10 4 DE CORTANTE DETALLE LLAVE HIDROFILO CORDON

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, DETAIL, DWG, flagstone, FOUNDATION, foundations, fundament, wall
