Walls – Brick DWG Detail for AutoCAD

Walls – Brick DWG Detail for AutoCAD

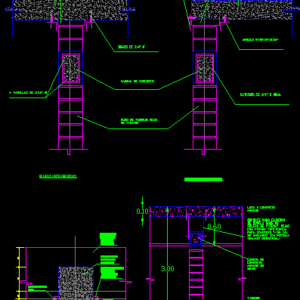

Walls – Brick Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

polystyrene strip, lock concrete slab, rods, red partition wall of, concrete chain, arm of, plate, lock concrete slab, polystyrene strip, stirrups, angle, intermediate, perimeter, tile tile from, red partition, reinforced concrete chain, support for fixation of wall of base of pijas with bolts type espija for concrete lime anchored with pistol, reinforced concrete slab, Top of the wall with lock, Concrete repison apparent finish, apparent concrete column, mangete tubular profile base sheet, thick transparent glass, polyurethane gasket, red partition wall annealed, vinyl jonquil, vaguet with pija, column union with annealed red partition wall

Raw text data extracted from CAD file:

TIRA DE POLIESTIRENO TRABE O LOSA DE CONCRETO 4 VARILLAS DE 5/16" O MURO DE TABIQUE ROJO DE 7X14X28 CADENA DE CONCRETO BRAZO DE 1/4" O PLACA DE 4"X8"X3/16" TRABE O LOSA DE CONCRETO TIRA DE POLIESTIRENO ESTRIBOS DE 1/4" @ 20cm. ANGULO 2"X2"X8"X3/16" \FARIALBD.TTF;\LMURO INTERMEDIO \FARIALBD.TTF;\LMURO PERIMETRAL 3.00 0.60 0.10 LOCETA DE AZULEJO DE 40X40 TABIQUE ROJO 7X14X28 CADENA DE CONCRETO ARMADO DE 15X15 SOPORTE PARA FIJACIÒN DE MURO A BASE DE SOLERA DE 1"X3/16", PIJAS CON PERNOS TIPO ESPIJA PARA CONCRETO T-32 CAL 38 ANCLADOS CON PISTOLA (BALAZO INDUSTRIAL) LOSA D CONCRETO ARMADO 5 5 5 \FARIALBD.TTF;\LDETALLE REMATE MURO CON TRABE 17.5 7.5 25 20 17.5 7.5 25 20 REPISON DE CONCRETO ACABADO APARENTE COLUMNA DE CONCRETO APARENTE MANGETE A BASE DE PERFIL TUBULAR DE LAMINA # 18 VIDRIO TRANSPARENTE DE 6mm DE ESPESOR JUNTA DE POLIURETANO DE 1cm. MURO DE TABIQUE ROJO RECOCIDO DE 7X14X28cm. JUNQUILLO DE VINIL VAGUET A CON PIJA UNION DE COLUMNA CON MURO DE TABIQUE ROJO RECOCIDO

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Glass
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, brick, brick walls, constructive details, DETAIL, details, DWG, mur de briques, panel, parede de tijolos, partition wall, walls, ziegelmauer
