Waterproofing Chova DWG Block for AutoCAD

Waterproofing Chova DWG Block for AutoCAD

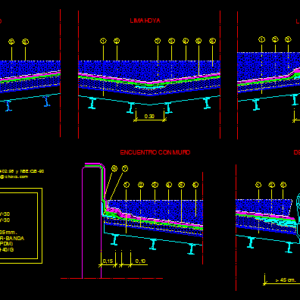

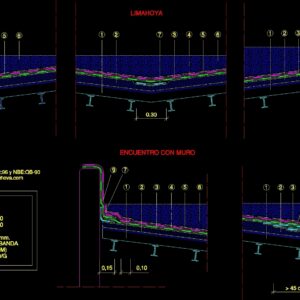

Waterproofing Chova – Double coat – Deck – Crushed stone

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Cm., System according to, Www.chova.com, Cm., reinforcement, Greased sheet, Siphon cup, Limahoya, Type detail, Limes, drain, Meeting with wall, Arid wheeled. Mm.

Raw text data extracted from CAD file:

\A1;> 45 cm. \A1;>15 \A1;>10 \A1;0.30 \A1;0.30 \A1;0,10 \A1;0,15 Sistema PN-7, según UNE.104.402:96 y NBE:QB-90 www.chova.com - chova@chova.com 1 2 3 > 45 cm. >15 >10 7.- Refuerzo POLITABER-BANDA 4.- POLITABER-POL-PY-30 2.- LAROC-S 1.- Chapa grecada 4 8 7 8.- Cazoleta sifónica. (EPDM) 3.- POLITABER-POL-PY-30 0.30 1 2 7 3 4 0.30 1 2 7 3 4 0,10 5 1 2 3 4 7 1 2 5 6 LIMAHOYA DETALLE TIPO LIMATESA DESAGÜE ENCUENTRO CON MURO 9 5.- GEOFIM-150 3 4 6.- Árido Rodado. TM= 35 mm. 5 6 9.- POLITABER-COMBI-40/G 5 6 5 6 5 6
