Weld Mesh Fencing System DWG Block for AutoCAD

Weld Mesh Fencing System DWG Block for AutoCAD

WELD MESH FENCING SYSTEM

Drawing labels, details, and other text information extracted from the CAD file:

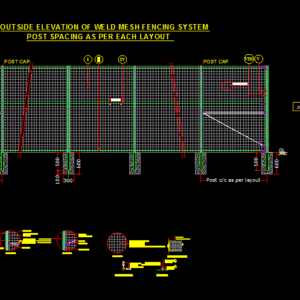

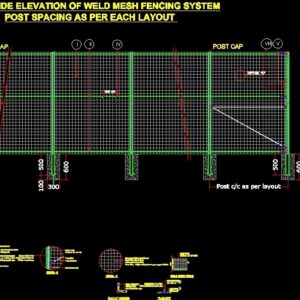

keyplan, as per layout, as per layout, fence height, post as per layout, post as per layout, outside elevation of weld mesh fencing system, detail, wire gi, post bs commercial pipe, support thk. bs commercial pipe., at corner, at ip, wire dia gi wire, fence height, mesh fence, bracket, rod, winder set, plate thk ms flat, end post made out of od bs commercial pipe, support made out of od bs commercial pipe, wire made out of gi, end cap, gi carriage bolt, plate thk ms flat, cap, ‘c’, ‘a’, ‘b’, detail, galvanized weld mesh panel mesh wire dia mesh size panel size as per layout, detail, section, outside, inside, g.i long mushroom headed bolt with breakable nut., cap, winder, plate thk ms flat, post spacing as per each layout, specifications, sr. no., corner post, o.d bs commercial pipe as per layout given by clinet., intermediate post, tie wire, galvanized wire., stirrup wire, galvanized wire., line wire, end post, iii, vii, viii, galvanized weld mesh panel, cover plate, thk. m.s plate bar., o.d bs commercial pipe along with nos. horizontal support nos. truss made out of rod at corners., galvanized wire., mm dia heavily galvanized welded mesh panel. mesh panel size mtr as per layout, o.d bs commercial pipe along with no. horizontal support no. truss made out of rod at corners.

Raw text data extracted from CAD file:

W I N D A K A M S E N W 1 : 1 KEYPLAN \W0.62196; 1A \W0.71861; 2A \W0.79980; 2B \W2.06526; 3 \W0.70315; 1B \A1;50 \A1;50 \A1;2400 \A1;500 \A1;100 \A1;600 \A1;Post c/c as per layout \A1;500 \A1;100 \A1;600 \A1;300 \A1;500 \A1;600 \A1;Post c/c as per layout \A1;2400 FENCE HEIGHT \A1;500 \A1;100 \A1;600 \A1;2400 \A1;300 c/c 5 5 5 5 5 5 Post c/c as per layout 5 5 5 5 5 5 Post c/c as per layout GL GL OUTSIDE ELEVATION OF WELD MESH FENCING SYSTEM DETAIL -A DETAIL -B \A1;III \A1;II \A1;STIRRUPWIRE d2.5mm GI \A1;LINE WIRE d3.5mm GI \A1;INTERMEDIATE POST 60.3mm BS Commercial pipe \A1;HOR. SUPPORT 42.2mm Thk. BS Commercial pipe. \A1;PLAN AT CORNER \A1;PLAN AT IP \A1;LINE WIRE d3.5mm dia GI WIRE 2400 FENCE HEIGHT \A1;IV \A1;WELD MESH FENCE \A1;Truss Bracket \A1;Truss Rod \A1;Short winder set \A1;Cover Plate 30x5mm thk MS Flat \A1;Corner & End Post Made out of 76mm OD BS Commercial pipe \A1;Corner & End Post Made out of 76mm OD BS Commercial pipe \A1;Horizontal Support Made out of 42.2mm OD BS Commercial pipe \A1;Line Wire Made out of d3.5mm GI \A1;Rail end cap \A1;M8x110 GI Carriage bolt \A1;Cover Plate 30x5mm thk MS Flat \A1;POST CAP \A1;POST CAP \A1;DETAIL 'C' \A1;DETAIL 'A' \A1;DETAIL 'B' DETAIL -C Galvanized Weld Mesh Panel Mesh Wire Dia : 3.0mm Mesh Size : 75 x 75mm Panel Size : 2400mm (Height) x As per Layout (Width) 5 5 5 GL GL \A1;POST DETAIL \A1;CROSS SECTION Outside Inside G.I M8x110mm Long Mushroom Headed bolt with Breakable nut. 5 \A1;POST CAP \A1;I \A1;II \A1;IV \A1;V \A1;VI \A1;VII \A1;VIII 300 c/c \A1;Short Winder \A1;Cover Plate 30x5mm thk MS Flat POST SPACING AS PER EACH LAYOUT SPECIFICATIONS I \W1;SPECIFICATION \W1;ITEM SR. No. CORNER POST (CP) 60.3mm O.D BS COMMERCIAL PIPE C/C AS PER LAYOUT GIVEN BY CLINET. INTERMEDIATE POST (IP) TIE WIRE 2.0mmd GALVANIZED WIRE. STIRRUP WIRE 3 ROWS- 3.5mmd GALVANIZED WIRE. LINE WIRE END POST (EP) II III IV VI VII VIII GALVANIZED WELD MESH PANEL COVER PLATE 30x5mm THK. M.S FLAT-COVER PLATE BAR. V 76mm O.D BS COMMERCIAL PIPE ALONG WITH 2 Nos. HORIZONTAL SUPPORT & 2 Nos. TRUSS ROD, MADE OUT OF d10mm M S ROD AT CORNERS. 2.5mmd GALVANIZED WIRE. 3.0 mm DIA HEAVILY GALVANIZED WELDED MESH PANEL. MESH SIZE- 75mm (Vertical) x 75mm (Horizontal). PANEL SIZE : 2.4 Mtr (Height) x AS PER LAYOUT (Width). 76mm O.D BS COMMERCIAL PIPE ALONG WITH 1 No. HORIZONTAL SUPPORT & 1 No. TRUSS ROD, MADE OUT OF d10mm M S ROD AT CORNERS.

Language	English
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, DWG, fencing, mesh, stahlrahmen, stahlträger, steel, steel beam, steel frame, structure en acier, system, weld
