Wooden River Boat, Passenger Berths, Peru DWG Block for AutoCAD

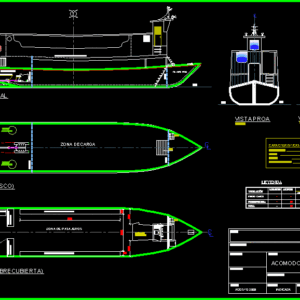

Wooden river boat with their respective accommodation of passengers, location and placement of benches hammocks legend and amounts in the respective levels, according to the policy of the DICAPI

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

bridge, tank, ss.hh., low, view bow, view aft, lb, sheet:, plate:, plane:, work:, designer :, drawn:, region:, owner:, indicated, scale:, date:, revised:, district:, passenger accommodation, up, loading area, passenger area, fuel tank, water tap, treated, cap. passenger, prop, sleeve, main features, overall length, description, legend, benches, cabins, hammocks, amount, total people, gas output, tq. bow air, tq. stern air, bulkhead, tow press, mamp., machine room, side elevation, wooden bca, bottom helmet, ubbicación, total, area, seats, dust jacket

Raw text data extracted from CAD file:

.40 .40 8.40 3.13 1.28 1.28 CAMAROTE 02 PERSONAS PUENTE DE MANDO DEPOSITO SS.HH. Baja Baja VISTA PLANTA (SOBRECUBIERTA) ESC. 1/75 VISTA PROA ESC. 1/75 VISTA POPA ESC. 1/75 L C C L L C L.B. L.B. L.B. L.B. LAMINA : MATRICULA : PLANO : OBRA : PROYECTISTA: DIBUJADO : Región : PROPIETARIO : INDICADA ESCALA : FECHA: REVISADO : AGOSTO 2008 Distrito : ACOMODO DE PASAJEROS VISTA PLANTA (CASCO) ESC. 1/75 Sube C L Baja ZONA DE CARGA ZONA DE PASAJEROS ESC A PLOT 1/75 BIDON DE COMBUSTIBLE COMBUSTIBLE BIDON DE TIMBO DE AGUA TRATADA BANCA DE MADERA = 14 PERSONAS CAP. DE PASAJEROS PUNTAL MANGA 38 PERSONAS 1.45 m. 4.05 m. CARACTERISTICAS PRINCIPALES ESLORA TOTAL 21.35 m. DESCRIPCION LEYENDA BANCAS CAMAROTES HAMACAS CANTIDAD 01 02 28 BANCA DE MADERA = 14 PERSONAS 5 5 5 5 5 5 31 TOTAL PERSONAS Madera 1/2" esp. Salida de Gases TQ. AIRE PROA TQ. AIRE POPA MAMPARO TUNEL 4" Ø EJE 2" PRENSA ESTOPA MAMP. MAMP. SALA DE MAQUINAS L.B. L.B. ZONA DE PASAJEROS ( SOBRECUBIERTA ) ESC. 1/75 ELEVACION LATERAL BCA DE MADERA = 4 PERS. BCA DE MADERA 3 PERSONAS BCA DE MADERA 3 PERSONAS - - - - - FONDO CASCO UBBICACIÓN TOTAL AREA 38 ASIENTOS LEYENDA CAMAROTES - CANTIDAD 38 TOTAL HAMACAS 38 38 - SOBRECUBIERTA MAMP. MAMPARO MAMPARO

Language	Spanish
Drawing Type	Block
Category	Vehicles
Additional Screenshots
File Type	dwg
Materials	Wood, Other
Measurement Units	Metric
