Zapata Isolated Subestacion DWG Detail for AutoCAD

Zapata Isolated Subestacion DWG Detail for AutoCAD

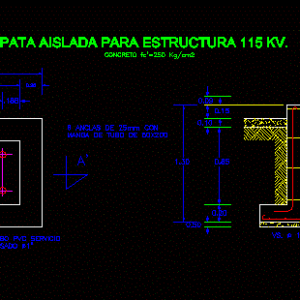

Detail of an isolated shoe; insulators 115kV substation

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

heavy, pipe service pvc, insulated shoe for kv structure., plant, sleeve of tube, anchors, concrete, vs. both senses, cut, anchors, level natural floor, stirrups, n.p.t., heavy, pipe service pvc

Raw text data extracted from CAD file:

PESADO d1" TUBO PVC SERVICIO ZAPATA AISLADA PARA ESTRUCTURA 115 KV. 0.15 PLANTA 0.25 A 0.15 0.40 0.70 0.25 0.50 0.20 MANGA DE TUBO DE 50X200 6 ANCLAS DE 25mm CON CONCRETO fc'=250 Kg/cm2 A' 1.30 0.85 0.10 0.15 0.09 VS. d 1/2" @ 20cms. AMBOS SENTIDOS CORTE A-A' 10 d 1/2" 6 ANCLAS d 25X1000 NIVEL PISO NATURAL ESTRIBOS 1/4"@30cms. N.P.T. PESADO d1" TUBO PVC SERVICIO \A1;1.70 \A1;1.20 \A1;1.20 \A1;0.25 .188 \A1;0.25 .188 0.412 0.412

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, DETAIL, details of foundations, DWG, footings, FOUNDATION, foundations, fundament, insulators, isolated, kv, pilotines, shoe, substation, zapata
