Zapata Run DWG Detail for AutoCAD

Zapata Run DWG Detail for AutoCAD

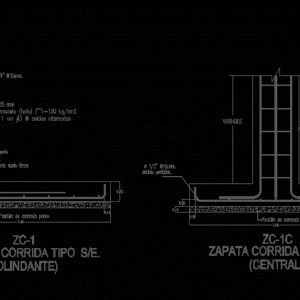

Detail central run and perimeter footing.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

shoe race type, dala, concrete in shoe, floor level, poor concrete template, both senses., brick cms, filling of reinforced concrete with alternating cells, shoe race type, concrete in shoe, floor level, poor concrete template, both senses., brick cms, filling of reinforced concrete with alternating cells, brick cms

Raw text data extracted from CAD file:

ZAPATA CORRIDA TIPO \A1;1.00 \A1;0.10 \A1;0.05 \A1;0.40 DALA 20X40 Concreto en zapata f'c=200kg/cm2 Nivel de Desplante suelo firme \A1;0.10 Plantilla de concreto pobre \A1;0.10 ZC-1 4 d 1/2" E d 1/4" @15cms. d 1/2" @15cms. ambos sentidos. LADRILLO 6X12X25 cms \A1;VARIABLE Relleno de concreto (todo) f``'c=150 kg/cm2 armado con 1 var #3 @ celdas alternadas S/E. ZAPATA CORRIDA TIPO \A1;1.00 \A1;0.10 \A1;0.05 \A1;0.40 Concreto en zapata f'c=200kg/cm2 Nivel de Desplante suelo firme \A1;0.10 Plantilla de concreto pobre \A1;0.10 ZC-1C d 1/2" @15cms. ambos sentidos. LADRILLO 6X12X25 cms (COLINDANTE) (CENTRAL) S/E. Relleno de concreto (todo) f``'c=150 kg/cm2 armado con 1 var #3 @ celdas alternadas LADRILLO 6X12X25 cms \A1;VARIABLE \A1;0.20 \A1;0.40

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, central, cimentacion, DETAIL, DWG, footing, FOUNDATION, foundations, fundament, perimeter, run, zapata
