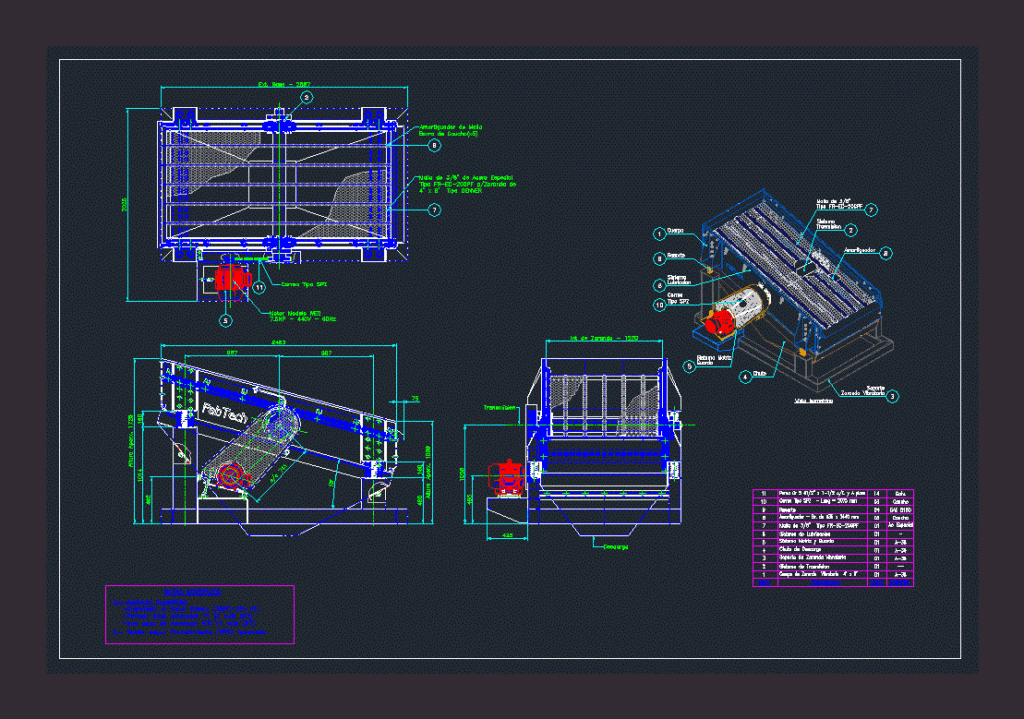

Zaranda DWG Block for AutoCAD

Zaranda DWG Block for AutoCAD

Mechanical Equipment mining application; vibrating screen used in crushing stone and rocks of medium size

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

by computer, order :, fabricators and technology sac, assisted design, customer :, fabtech sac, esc :, name, date, approved, drawn, revised, replacement of :, jst, e.ch.v., —- -, —, item, description, quantity, material, item, description, material, cant, isometric view, spz type belt, transmission, general notes:, discharge, lubrication system, motor system and guard, chute discharge, vibrating screen holder, transmission system, special ac, rubber, spring, galv., body, drive system, guard, system, lubrication, transmission, chute, shock absorber, support, vibrating screen, spz type, belt

Raw text data extracted from CAD file:

POR COMPUTADORA A2 ORDEN: FABRICATORS AND TECHNOLOGY SAC DISEÑO ASISTIDO CLIENTE: FabTech Sac Esc: NOMBRE FECHA APROBADO DIBUJADO REVISADO REEMPLAZO DE: - /01 /01 J.S.T - - E.CH.V. 1: ------ ------ ------ - --- - /01 Item Descripcion Cant. Material ITEM DESCRIPCION MATERIAL CANT 2025 Ext. Base - 2587 987 987 2463 75 1014 160 Altura Aporx. 1726 485 160 Altura Aporx. 1069 Int de Zaranda - 1220 1028 495 425 492 e/c 741 15° Vista Isometrica 5 Motor Modelo WEG 7.5HP - 440V - 60Hz 5 Ext. Base - <> Correa Tipo SPZ 5 5 5 5 5 5 Altura Aporx. <> 5 5 Altura Aporx. <> Malla de 3/8" de Acero Especial Tipo FR-EC-20GPF p/Zaranda de 4' x 8' Tipo DENVER Amortiguador de Malla Barra de Caucho(x5) 7 Int de Zaranda - <> 8 2 11 5 Transmision 5 5 NOTAS GENERALES: 1.- Acabado Superficial: -Granallado al Metal Blanco (SSPC-SP-10) -Pintado Base Amercoat 71 (2 mils DFT) 2.- Soldar segun Procedimiento (WPS) Aprobado. -Una capa de Amerlock 400 (4 mils DFT) Descarga 5 6 Sistema de Lubricacion - 01 5 Sistema Motriz y Guarda A-36 01 4 Chute de Descarga A-36 01 3 Soporte de Zaranda Vibratoria A-36 01 2 Sistema de Trasmision -- 01 1 Cuerpo de Zaranda Vibratoria 4' x 8' A-36 01 7 Malla de 3/8" Tipo FR-EC-20GPF Ac Especial 01 8 Amortiguador - Br. de d35 x 2440 mm Caucho 05 9 Resorte SAE 5160 04 11 Perno Gr 5 \U+22051/2" x 1-1/2 c/T. y A plana Galv. 14 10 Correa Tipo SPZ - Long = 2075 mm Caucho 03 9 Resorte 1 Cuerpo 5 Sistema Motriz Guarda 6 Sistema Lubricaion 2 Sistema Trasmision 4 Chute 7 Malla de 3/8" Tipo FR-EC-20GPF 8 Amortiguador 3 Soporte Zaranda Vibratoria 10 Tipo SPZ Correa e/c <> <>

Language	Spanish
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	application, autocad, bergbau, block, bohr, drilling, DWG, equipment, l'exploitation minière, le forage, mechanical, medium, mineração, mining, perfuração, screen, stone
