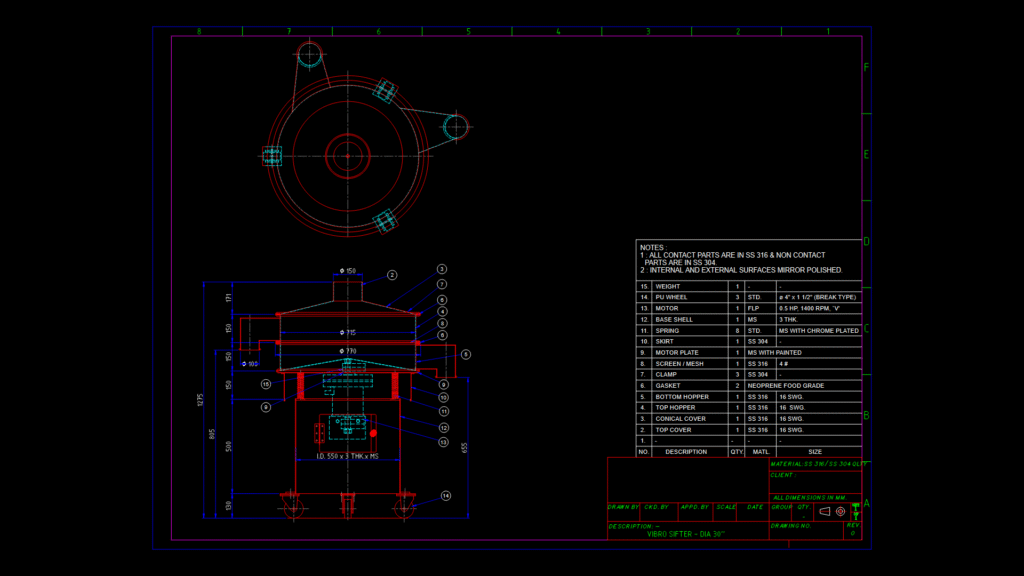

30-Inch Vibro sifter Assembly Detail with SS316/304 Construction

Industrial Vibro Sifter Technical Specification

This detailed assembly drawing depicts a 30-inch diameter industrial vibro sifter designed for material screening and separation applications. The equipment consists of multiple precision-engineered components fabricated primarily from food-grade stainless steel.

Key Components:
– Top section comprising a SS316 top cover (16 SWG), conical cover (16 SWG), and top hopper (16 SWG)
– Bottom section featuring a SS316 bottom hopper (16 SWG) with I.D. 550 mm × 3 THK base shell constructed of MS
– Screen/mesh assembly (4#) manufactured from SS316 with neoprene food-grade gaskets and SS304 clamps
– Drive system utilizing a 0.5 HP, 1400 RPM ‘V’ FLP motor mounted on MS painted motor plate
– Vibration mechanism including 8 standard springs and 3 PU wheels (4″ × 1½” break type)
– Chrome-plated MS components for enhanced durability

Design Features: The unit incorporates mirror-polished internal and external surfaces for sanitary applications, with all product-contact parts manufactured from SS316 for corrosion resistance and non-contact parts from SS304. The dimensional profile shows the sifter’s total height of approximately 865 mm with a 770 mm diameter upper section tapering to 550 mm at the base shell.

This industrial sifter is engineered for efficient particle separation in food processing, pharmaceutical, or chemical applications requiring precise material classification.
