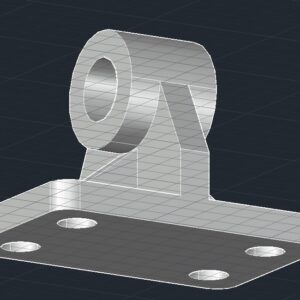

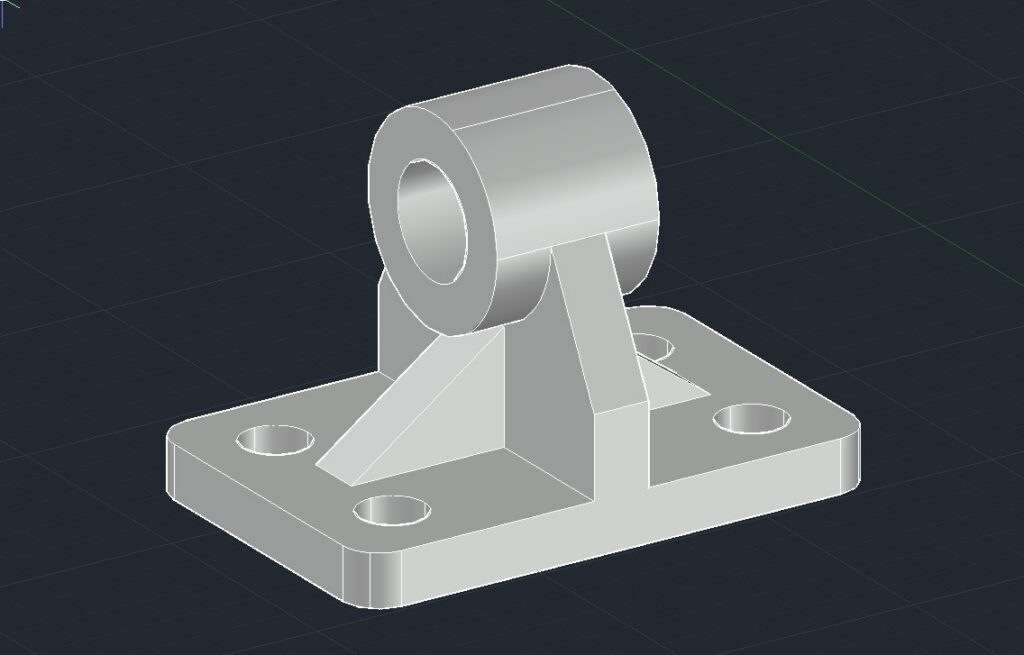

A 3D Model of Rod Support Tool
The support rods are generally used to attach the spring to the stationary support member or structural steel and to transfer the load from the pipe onto the spring.
| Language | English |
| Drawing Type | Block |
| Category | Roads, Bridges and Dams |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | Aluminum, Plastic, Steel |
| Measurement Units | Metric |
| Footprint Area | N/A |
| Building Features | A/C, Fireplace, Deck / Patio, Elevator, Escalator, Parking |
| Tags | pipes, Pipes support, rods, Rods supporter, Stationary support |
