Acoustic Insulation Details DWG Detail for AutoCAD

Acoustic Insulation Details DWG Detail for AutoCAD

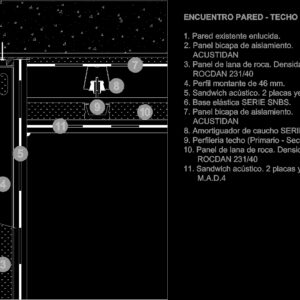

Detail external Wall – Roof

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Meeting wall covering existing plaster wall. Insulation double layer panel. Accused panel of rock wool. Density rocdan profile amount of mm. Acoustic sandwich. Plates plasterboard elastic base snbs series. Insulation double layer panel. Accurate rubber shock absorber series sntg snh. Roof tile panel of rock wool. Density rocdan sandwich acoustic. Laminated plasterboard

Raw text data extracted from CAD file:

ENCUENTRO PARED - TECHO 1. Pared existente enlucida. 2. Panel bicapa de aislamiento. ACUSTIDAN 3. Panel de lana de roca. Densidad 70 kg/m 3 . ROCDAN 231/40 4. Perfil montante de 46 mm. 5. Sandwich acústico. 2 placas yeso laminar 13 + M.A.D.4 6. Base elástica SERIE SNBS. 7. Panel bicapa de aislamiento. ACUSTIDAN 8. Amortiguador de caucho SERIE SNTG o SNH. 9. Perfileria techo (Primario - Secundario). 10. Panel de lana de roca. Densidad 70 kg/m 3 . ROCDAN 231/40 11. Sandwich acústico. 2 placas yeso laminar 13 + M.A.D.4

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	acoustic, acoustic detail, akustische detail, autocad, DETAIL, details, details acoustiques, detalhe da acustica, DWG, external, insulation, isolamento de ruido, isolation acoustique, noise insulation, roof, schallschutz, wall
