Detail External walls with plaster panels in interior – Floor

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Meeting wall flooring existing plaster wall. Multi-layer insulation panel. Sonodan plus profile uprights mm. Acoustic sandwich. Gypsum plasterboards m.a.d. Channel profile mm. Durable stand. Rubber shock absorber series snpa. Panel of rock wool. Density rocdan insulation impact noise. Impact of mortar layer reinforced with mesh. Finishing pavement. Shock absorber series

Raw text data extracted from CAD file:

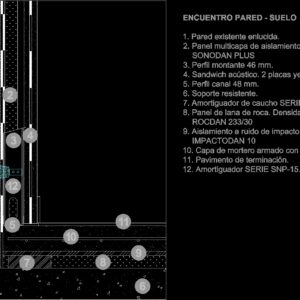

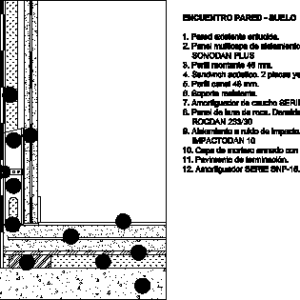

ENCUENTRO PARED - SUELO 1. Pared existente enlucida. 2. Panel multicapa de aislamiento. SONODAN PLUS 3. Perfil montante 46 mm. 4. Sandwich acústico. 2 placas yeso laminar 13 + M.A.D. 4 5. Perfil canal 48 mm. 6. Soporte resistente. 7. Amortiguador de caucho SERIE SNPA. 8. Panel de lana de roca. Densidad 100 kg/m 3 . ROCDAN 233/30 9. Aislamiento a ruido de impacto. IMPACTODAN 10 10. Capa de mortero armado con mallazo. 11. Pavimento de terminación. 12. Amortiguador SERIE SNP-15.
