Air Space – Wall DWG Section for AutoCAD

Air Space – Wall DWG Section for AutoCAD

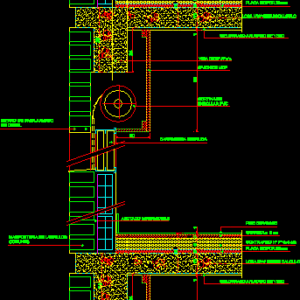

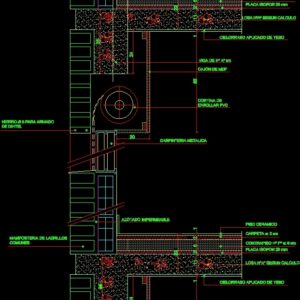

Air space – Wall – Double – Sections – ceramic block

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

technological detail, esc, beam of hº aº, plaster ceiling applied, slab hºaº according to calculation, subfloor hº pº e: cm, isopor plate mm, folder e: cm, ceramic floor, pvc winding curtain, mdf drawer, whipped waterproof, common bricks masonry, metal carpentry, consecutive slab windows, ceramic hollow brick masonry, beam of hº aº, ceramic ceramics, plaster ceiling applied, slab hºaº according to calculation, subfloor hº pº e: cm, isopor plate mm, folder e: cm, ceramic floor, gypsum thin thick plaster, pvc winding curtain, mdf drawer, whipped waterproof, common bricks masonry, metal carpentry, iron for lintel assembly

Raw text data extracted from CAD file:

\A1;35 \A1;55 \A1;1 \A1;11 \A1;2 \A1;1 \A1;22 \A1;20 \A1;2 \A1;6 \A1;24 \A1;55 \A1;1 \A1;11 \A1;2 \A1;1 \A1;22 \A1;20 \A1;2 \A1;6 \A1;24 \A1;35 DETALLE TECNOLOGICO 1 Esc. 1:10 VIGA DE Hº Aº s/c 55 5 5 5 5 22 CIELORRASO APLICADO DE YESO LOSA HºAº SEGUN CALCULO CONTRAPISO Hº Pº e: 6 cm PLACA ISOPOR 20 mm CARPETA e: 2 cm PISO CERAMICO CORTINA DE ENROLLAR PVC CAJON DE MDF 20 5 5 5 AZOTADO IMPERMEABLE MAMPOSTERIA DE LADRILLOS COMUNES CARPINTERIA METALICA 5 VENTANAS S/ LOSAS CONSECUTIVAS MAMPOSTERIA DE LADRILLOS HUECOS CERAMICOS VIGA DE Hº Aº s/c ZOCALO CERAMICO 55 5 5 5 5 22 CIELORRASO APLICADO DE YESO LOSA HºAº SEGUN CALCULO CONTRAPISO Hº Pº e: 6 cm PLACA ISOPOR 20 mm CARPETA e: 2 cm PISO CERAMICO REVOQUE GRUESO Y FINO DE YESO CORTINA DE ENROLLAR PVC CAJON DE MDF 20 5 5 5 AZOTADO IMPERMEABLE MAMPOSTERIA DE LADRILLOS COMUNES CARPINTERIA METALICA 5 HIERRO d 8 PARA ARMADO DE DINTEL HIERRO d 8 PARA ARMADO DE DINTEL

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Masonry
Measurement Units
Footprint Area
Building Features
Tags	air, autocad, block, brick walls, ceramic, constructive details, double, DWG, mur de briques, panel, parede de tijolos, partition wall, section, sections, space, wall, ziegelmauer
