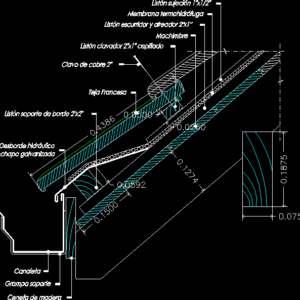

DETALLE CONSTRCTIVO DE ALERO CON CANALETA;se detalla la cubierta de techo de madera;con algunas medidas;para teja tipo francesa;con Membrana termo hidrófuga.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

date: april, line: tile, detail:, archive, scale, thermohydrug membrane, drainboard aerator, clamping strip, brushed nailing strip, machimbre, french tile, edge support rail, copper nail, wood border, support clamp, channel, hydraulic overflow galvanized sheet

Raw text data extracted from CAD file:

C E R A M I C A S P O R C E L L A N A T O T E J A S C A L V U FECHA: Abril 2007 LINEA: TEJA DETALLE: ARCHIVO ESCALA 1:5 \A1;0.1875 \A1;0.0750 \A1;0.4386 \A1;0.1500 \A1;0.1274 \A1;0.0592 \A1;0.0260 \A1;0.0500 Membrana termohidrófuga Listón escurridor y aireador 2"x1" Listón sujeción 1"x1/2" Listón clavador 2"x1" cepillado Machimbre Teja Francesa Listón soporte de borde 2"x2" Clavo de cobre 2" Cenefa de madera Grampa soporte Canaleta Desborde hidráulico chapa galvanizada 5 5 5 5 5 5 5 5
