Aluminium Opening DWG Block for AutoCAD

Aluminium Opening DWG Block for AutoCAD

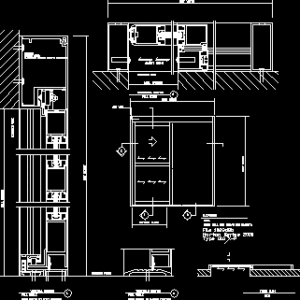

Sliding glass door

Drawing labels, details, and other text information extracted from the CAD file:

safety beams, horizontal section, unit height, full scale, wall opening, n.t.s., floor plan, maximum slide, exterior side, unit width, horton, electric linear drive operator, threshold section, door shown in closed position, vertical section, door shown in open position, finished floor, elevation, note: wall not shown for clarity.

Raw text data extracted from CAD file:

SAFETY BEAMS HORIZONTAL SECTION UNIT HEIGHT 2 FULL SCALE WALL OPENING 2 N.T.S. FLOOR PLAN 3 1 MAXIMUM SLIDE EXTERIOR SIDE 3 UNIT HEIGHT WALL OPENING 1 UNIT WIDTH File 1029d2b Horton Series 2000 Type 010 X-P UNIT WIDTH HORTON SERIES 2000 ELECTRIC LINEAR DRIVE OPERATOR THRESHOLD SECTION FULL SCALE DOOR SHOWN IN CLOSED POSITION VERTICAL SECTION FULL SCALE DOOR SHOWN IN OPEN POSITION EXTERIOR SIDE FINISHED FLOOR ELEVATION N.T.S. NOTE: WALL NOT SHOWN FOR CLARITY. 120 VAC

Language	English
Drawing Type	Block
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Glass, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	aluminium, autocad, block, door, DWG, glass, opening, sliding
