Armor Pilotin DWG Block for AutoCAD

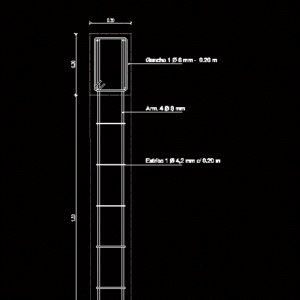

Extreme long irons and stirrups reinforcement diameter, dimensions of finished item; meeting with beam chained

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

plant esc., cut esc., pilotin hºaº hº arm. mm est. mm development units, hook mm, hook mm, arm mm, stirrup mm, hook

Raw text data extracted from CAD file:

\A1;1.20 \A1;0.20 \A1;0.30 \A1;0.20 \A1;0.20 \A1;0.20 \A1;0.16 \A1;0.14 \W9.17373; Planta - esc. 1:10. \W9.36097; Corte - esc. 1:10. 5 5 5 5 Pilotin HºAº 0.20 x 0.20m. Hº C 1:3:3 Arm. 4 Ø 8 mm - 1.73 m Est. Ø 4.2 mm c/ 0.20 m Desarrollo - 0.60 m - 5 unidades Gancho 1 Ø 8 mm - 0.20 m 5 Gancho 1 Ø 8 mm - 0.20 m Arm. 4 Ø 8 mm Estribo 1 Ø 4,2 mm c/ 0.20 m 5 5 5 Gancho 0.05 m

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
