Axonometric Of Metallic Roof DWG Detail for AutoCAD

Detail plate roof sandwich type

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

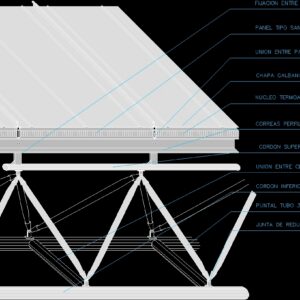

Lower tube cord, Thermal insulating core of rigid polyurethane foam, Galvanized sheet calf bwg prepined, Union between panles, Fixation between strap structure, Sandwich panel, Upper tube cord, Profile straps, Tube strut, Union between girdles tube mm, Joint of reduction of props

Raw text data extracted from CAD file:

CORDON INFERIOR TUBO d 101,6mm NUCLEO TERMOAISLANTE DE ESPUMA DE POLIURETANO RIGIDO DE 40 kg/m3 CHAPA GALBANIZADA CALIBRE BWG 24 PREPINTADA UNION ENTRE PANLES FIJACION ENTRE CORREA Y ESTRUCTURA PANEL TIPO SANDWICH CORDON SUPERIOR TUBO d 53,97mm CORREAS PERFIL C N°10 PUNTAL TUBO 38,10mm UNION ENTRE CERCHAS TUBO d 53,97 mm JUNTA DE REDUCCION DE PUNTALES

Language	N/A
Drawing Type	Detail
Category	Construction Details & Systems
