Bar Restaurant, Saloon 2D DWG Plan for AutoCAD
ADVERTISEMENT
ADVERTISEMENT

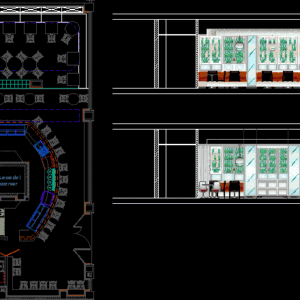

Plan and section view of bar restaurant. The floor plan has following areas – entrance, reception, elevator, stair case, portal, washing area, restroom, 4 two seater table, 10 single seater table, 2 four seater table. Section view shows the door, windows, cupboards, lighting arrangements and applied materials. Total foot print area of the plan is approximately 200 sq meters.
| Language | English |
| Drawing Type | Plan |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood, Other |
| Measurement Units | Metric |
| Footprint Area | 150 - 249 m² (1614.6 - 2680.2 ft²) |
| Building Features | A/C, Deck / Patio, Elevator |
| Tags | accommodation, autocad, BAR, DWG, hostel, Hotel, Restaurant, saloon, spa |
