Bathrooms – Details DWG Full Project for AutoCAD

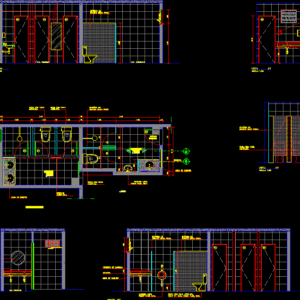

Project with details of male or female bathrooms – Section – Views – Details
Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):
Masonry demolish, Alv. Be built, Masonry be built, subtitle, Existing masonry, W.c. men, Beginning of pagination, stand, Built-in tank, View, View, Basin with box, stand, Built-in tank, Bench faucet, Silver mirror, Soap dish in with reservoir for liquid soap, Towel door in pvc dispenser type, Basin with box, Built-in tank, Soap dish in with reservoir for liquid soap, Towel door in pvc dispenser type, W.c. fem., Existing kitchen, Built-in tank, Soap dish in with reservoir for liquid soap, stand, Bench faucet, Built-in tank, Gray granite partition, Basin with box ref.p vogue line deca, Urinal row, Vogue deca, Gray granite partition, Silver mirror, Gray granite partition, Basin with box, Basin with box, Basin with box, Urinal row, Vogue deca, stand, Bench faucet, Built-in tank, Silver mirror, W.c. male, W.c. female, Cut aa, scale:, W.c. female, Cut bb, scale:, View, scale:, View, scale:, Partition in, Granite gray silver, View, scale:, mirror, Built-in tank, Gusmão, Tel, Health plant men. Fem., drawing, scale, board, date:, September, Health detailing, subject matter:, drawing:, Mª isabel lucena, Stage of the project:, project, Calcareous Baptist Church, architect:, Maria isabel gusmão from lucena creates:, Gusmão de lucena, Gusmão, Tel, Cut aa, drawing, scale, board, date:, September, Health detailing, subject matter:, drawing:, Mª isabel lucena, Stage of the project:, project, Calcareous Baptist Church, architect:, Maria isabel gusmão from lucena creates:, Gusmão de lucena, Gusmão, Tel, Cut bb, drawing, scale, board, date:, September, Health detailing, subject matter:, drawing:, Mª isabel lucena, Stage of the project:, project, Calcareous Baptist Church, architect:, Maria isabel gusmão from lucena creates:, Gusmão de lucena, Gusmão, Tel, Views, drawing, scale, board, date:, September, Health detailing, subject matter:, drawing:, Mª isabel lucena, Stage of the project:, project, Calcareous Baptist Church, architect:, Maria isabel gusmão from lucena creates:, Gusmão de lucena
Raw text data extracted from CAD file:
Language | Portuguese |
Drawing Type | Full Project |
Category | Bathroom, Plumbing & Pipe Fittings |
Additional Screenshots | |
File Type | dwg |
Materials | Masonry |
Measurement Units | |
Footprint Area | |
Building Features | Car Parking Lot |
Tags | autocad, bad, bathroom, bathrooms, casa de banho, chuveiro, details, DWG, full, lavabo, lavatório, Project, salle de bains, section, toilet, views, waschbecken, washbasin, WC |
