Bay Window Detail DWG Plan for AutoCAD

Bay Window Detail DWG Plan for AutoCAD

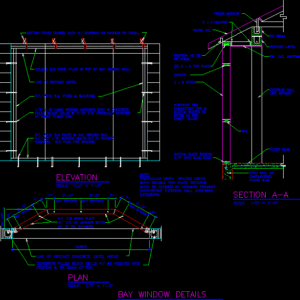

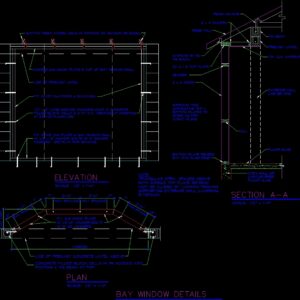

Plan, elevation, section

Drawing labels, details, and other text information extracted from the CAD file:

bay window details, const. plans, studs as per, bottom plates to, hurrican ties, bottom plate recess, supporting exterior wall covering, must be closed by common framing, both double top plate returns, triangular open spaces above, max. spacing, line of precast concrete lintel above, plan, elevation, max spacing max spacing, washers. see plan for spacing., extension., note:, line of precast lintel., header, or equal, cantilevered, stem wall or, floor slab, section a-a, sill, line beyond, exterior wall, fin. clg. material, precast lintel, tie beam, truss anchor, truss tail

Raw text data extracted from CAD file:

\A1;VARIES \A1;2'-0" \A1;MAY VARY \A1;6" \A1;7" \A1;2'-0" \A1;6" \A1;7" \A1;7" \A1;2'-0" \A1;7" \A1;2'-0" BAY WINDOW DETAILS 2 x 6 STUDS (2) 2 x 6 TOP PLATE SIMPSON H5 TIE CONST. PLANS STUDS AS PER BOTTOM PLATES TO CONNECTING TOP & HURRICAN TIES 3/4" INTO SLAB EDGE BOTTOM PLATE RECESS SUPPORTING EXTERIOR WALL COVERING MUST BE CLOSED BY COMMON FRAMING BOTH DOUBLE TOP PLATE RETURNS TRIANGULAR OPEN SPACES ABOVE MAX. SPACING 5 5 5 6" 5 MAX. SPACING 5 6" 5 CONCRETE FILLED BLOCK CELLS W/ #5 HOOKED INTO LINE OF PRECAST CONCRETE LINTEL ABOVE PLAN SCALE: 1/2" = 1'-0" P.T. 2x6 WOOD PLATE W/ 1/2"x8" ANCHOR BOLTS W/ 3" SQ. WASHERS. FOOTING & TIE BEAM AT TOP. P.T. WOOD 2x6 PLATE @ BAY WINDOW WALL FILLED BLOCK CELLS @ 2'-0" O.C. VERTICALLY STARTING 1/2" x 8" LONG HOOKED ANCHORS CAST IN CONCRETE 5 SCALE: 1/2" = 1'-0" ELEVATION MAX SPACING MAX SPACING 5 5 5 8" ABOVE FLOOR LINE. W/ 1/2" x 8" ANCHOR BOLTS W/ 3" SQUARE WASHERS. SEE PLAN FOR SPACING. EXTENSION. NOTE: BOTTOM TRUSS CHORD, EACH W/ SIMPSON H4 ANCHOR OR EQUAL. DOUBLE 2x6 WOOD PLATE @ TOP OF BAY WINDOW WALL. LINE OF PRECAST LINTEL. P.T. WOOD 2x4 STUDS & BLOCKING. HEADER OR EQUAL CANTILEVERED STEM WALL OR FLOOR SLAB SECTION A-A SCALE: 1/2" = 1'-0" FLOOR SLAB SILL LINE BEYOND EXTERIOR WALL FIN. CLG. MATERIAL PRECAST LINTEL TIE BEAM TRUSS ANCHOR 2 x 4 NAILERS TRUSS TAIL

Language	English
Drawing Type	Plan
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Concrete, Wood, Other
Measurement Units	Imperial
Footprint Area
Building Features
Tags	autocad, bay, construction details, DETAIL, DWG, elevation, plan, section, window
