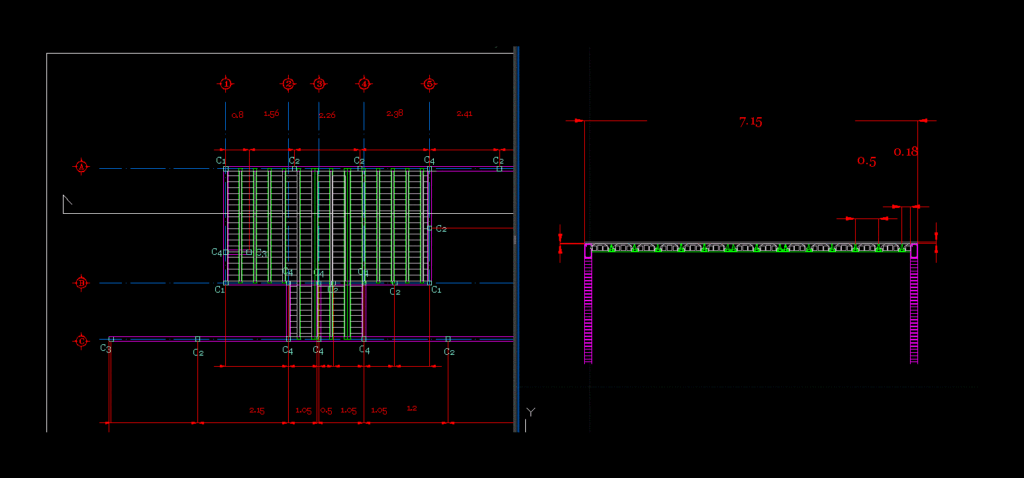

Beam And Vault DWG Block for AutoCAD

Beam And Vault DWG Block for AutoCAD

Ground floor house built with social interest girder structural system and Bovedilla

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

bmw series, north, location:, name of the map:, do not. of plan:, matter:, date:, mts., dimension:, scale:, teacher:, sketch of location:, orientation:, Specifications:, area chart, key:, the concrete will have a maximum aggregate of inch. concrete shall be emptied a maximum height of cm. concrete will be given to, days for it to set correctly. the natural days will be cleared. The slab will have a cm counter. all joist overlaps shall be cm., systems construction processes, m. in arq. rafael gomez jimenez, slab, total area:, students, karla stephanie salas almonte laila towers orozco anna alvarez yañez claudia patricia gonzález godines, cut, plant

Raw text data extracted from CAD file:

BMW Serie X5 2.97 3.12 0.98 1.55 2.89 3.1 3.18 18 2.93 2.93 2.15 1.05 0.5 1.05 1.05 1.2 0.8 1.56 2.26 2.38 2.41 2.1 2.41 1.96 6 7.15 0.18 0.5 0.01 0.04 NORTE LOCALIZACION: NOMBRE DEL PLANO: No. DE PLANO: MATERIA: FECHA: MTS. ACOTACION: ESCALA: DOCENTE: 1:50 01 CROQUIS DE UBICACION: ORIENTACION: Especificaciones: CUADRO DE AREAS CLAVE: A B C 1 2 3 4 5 6 C1 C1 C1 C1 C1 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C3 C3 C4 C4 C4 C4 C4 C4 C4 C4 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 - El concreto tendrá un agregado máximo de 3/4 pulgada. -El concreto será vaceado a una altura máxima de 60 cm. -Al concreto se le darán 15 días para que fragüe correctamente. Se desimbrará a los 15 días naturales. -La losa tendrá una contraflecha de 1.5 cm. Todos los traslapes de vigueta a vigueta será de 50 cm. E1 09-Oct-2014 Sistemas y Procesos Constructivos M. en Arq. Rafael Gómez Jimenez Losa VIGUETA y BOVEDILLA Área total: 107.66 Alumnas: - Karla Stephanie Salas Almonte - Laila Torres Orozco - Anna Alvarez Yañez - Claudia Patricia González Godines T1 CORTE T1 PLANTA 5 5 5 5 5

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, beam, block, built, cover, dach, DWG, floor, girder, ground, hangar, house, interest, lagerschuppen, roof, shed, social, structural, structure, system, terrasse, toit, vault
