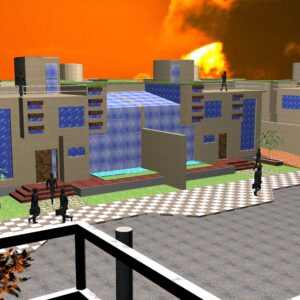

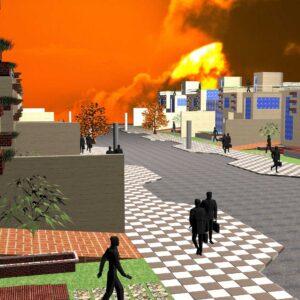

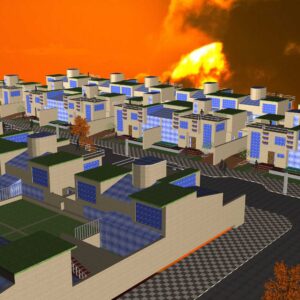

Bioclimatic Urban Housing 3D DWG Model for AutoCAD
Design housing Social Bio – climatic with adobe in urbanization
Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

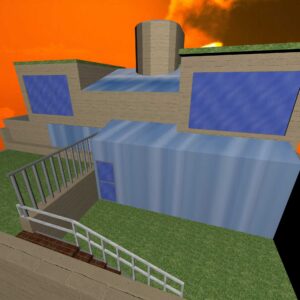

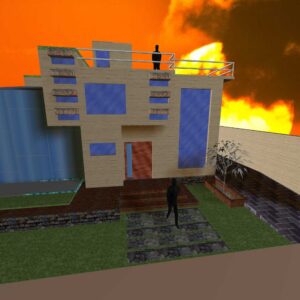

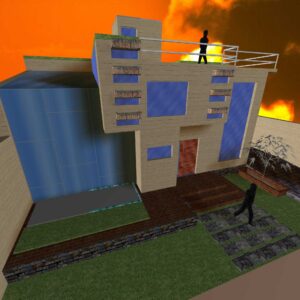

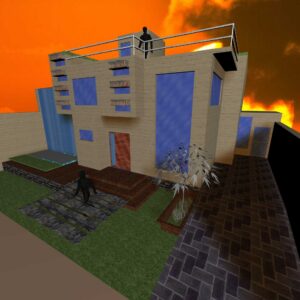

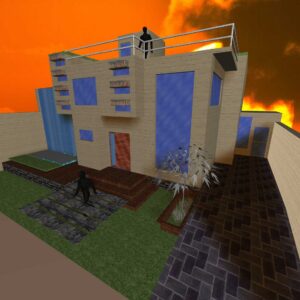

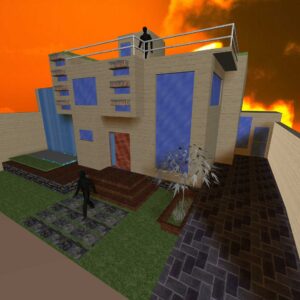

radiation, water mirror, thermal mass, collection, stores heat during the day and releases it at night, transfer heat through radiation, strategies, thermal inertia cover, security area, sports fields, gazebo, playground, home communal, green area, urban planning ii, housingbioclimatic, luis alejandro c. – johanna villavicencio o., detail of double window ventilated glass, covered garden, ground floor, roof plant, upper floor, cutting, ventilation, avoid heating the slab, solar energy collection, front facade, rear facade, site, perspectivesdelconjun to , housing plans, individual perspectives, for the design of bioclimatic housing we take into account principles related to sunlight and ventilation. the location of the east – west housing allows the use of both the morning and afternoon sun, this in order to apply the principle of capture through a thermal mass in this case the adobe walls that have been used in this way to capture the solar energy and accumulate it for the night especially in relation to the sleeping area. Within the materials the adobe was used due to the characteristics it presents: – it is adaptable to a range of structure. – ability to store cold or heat. – The adobe has the ability to absorb heat for considerable periods of time. – load-bearing walls of up to two floors. Tiled roofs are used, but to avoid constant sun exposure, vegetation is applied, creating garden roofs that prevent solar radiation and keep the rooms cool.
Raw text data extracted from CAD file:
| Language | Spanish |
| Drawing Type | Model |
| Category | Parks & Landscaping |
| Additional Screenshots |
              |
| File Type | dwg |
| Materials | Glass, Other |
| Measurement Units | Metric |
| Footprint Area | |
| Building Features | Garden / Park, Deck / Patio |
| Tags | adobe, autocad, bio, bioclimatic, bioclimatica, bioclimatique, bioklimatischen, Design, durable, DWG, Housing, la durabilité, model, nachhaltig, nachhaltigkeit, residence, social, sustainability, sustainable, sustentabilidade, sustentável, urban, urbanization |
