Box Release Pluvial DWG Block for AutoCAD

Box Release Pluvial DWG Block for AutoCAD

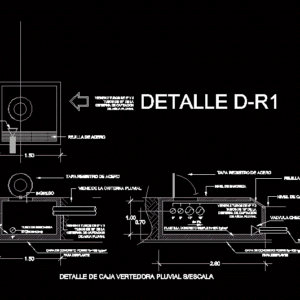

WEIR BOX AND SPEEDER FOR RAINWATER TO STREET PUMPING CONCRETE BOX; REGISTRATION AND STORM OUT.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Discharge tube cms exceedances, Corrugated pear, Steel grid, Steel registration cover, There are tubes of tubes of the cistern of rainwater collection, Comes from the storm cistern, Discharge pipe, There are tubes of tubes of the cistern of rainwater collection, Street level, Steel grid, Bench level, entry, Pvc check valve, Poor concrete cover, For curfew, Simple concrete template, Poor concrete cover, For curfew, Simple concrete template, Pluvial spout box detail, Steel registration cover, Pvc check valve, Exceedances, detail, There are tubes of tubes of the cistern of rainwater collection

Raw text data extracted from CAD file:

TUBO DE DESCARGA 15 CMS EXCEDENCIAS PEAD CORRUGADO DE 6" REJILLA DE ACERO TAPA REGISTRO DE ACERO 10" 10" 6" 6" \W1.84806; VIENEN 2 TUBOS DE 6" Y 2 \W1.84806; TUBOS DE 10" DE LA \W1.84806; CISTERNA DE CAPTACION \W1.84806; DE AGUA PLUVIAL VIENE DE LA CISTERNA PLUVIAL 6" TUBO DE DESCARGA \W1.84806; VIENEN 2 TUBOS DE 6" Y 2 \W1.84806; TUBOS DE 10" DE LA \W1.84806; CISTERNA DE CAPTACION \W1.84806; DE AGUA PLUVIAL NIVEL DE CALLE REJILLA DE ACERO NIVEL DE BANQUETA 1.50 1.50 INGRESO VALVULA CHECK DE PVC CAPA DE CONCRETO POBRE f'c=100 kg/cm² PARA DESPLANTE S= 2% PLANTILLA CONCRETO SIMPLE f'c=200 kg/cm² CAPA DE CONCRETO POBRE f'c=100 kg/cm² PARA DESPLANTE PLANTILLA CONCRETO SIMPLE f'c=200 kg/cm² 1.50 1.00 2.80 0.70 DETALLE DE CAJA VERTEDORA PLUVIAL S/ESCALA TAPA REGISTRO DE ACERO VALVULA CHECK DE PVC EXCEDENCIAS DETALLE D-R1 \W1.84806; VIENEN 2 TUBOS DE 6" Y 2 \W1.84806; TUBOS DE 10" DE LA \W1.84806; CISTERNA DE CAPTACION \W1.84806; DE AGUA PLUVIAL

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, box, concrete, DWG, kläranlage, pluvial, pumping, rain, rainwater, registration, storm, street, treatment plant
