Camera Bt A-2 DWG Block for AutoCAD

Camera Bt A-2 DWG Block for AutoCAD

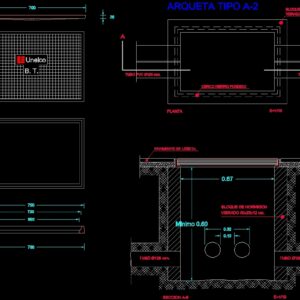

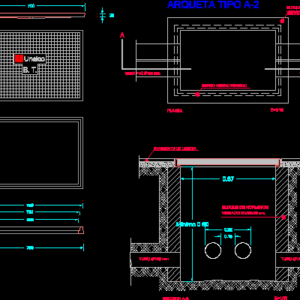

Camera BT A-2a- Plant – Views – Enclosed measures

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

cast iron fence, chest type, tile pavement, section, PVC tube mm., plant, concrete slab, PVC tube mm., concrete block, vibrated cm., concrete block, vibrated cm., tube mm., unelco, b. t.

Raw text data extracted from CAD file:

\A1;0.67 \A1;Minimo 0.60 \A1;0.32 \A1;0.10 \A1;700 \A1;25 \A1;500 \A1;15 \A1;440 \A1;470 \A1;500 \A1;750 \A1;720 \A1;690 \A1;760 -7.105289781567478 CERCO HIERRO FUNDIDO ARQUETA TIPO A-2 PAVIMENTO DE LOSETA -7.105289781567478 SECCION A-B TUBO PVC d125 mm. A PLANTA SOLERA DE HORMIGON E=1/10 TUBO PVC d125 mm. BLOQUE DE HORMIGON VIBRADO 50x25x9 cm. B E=1/10 -2.387277525922201 -2.387277525922201 BLOQUE DE HORMIGON VIBRADO 50x25x12 cm. TUBO d125 mm. TUBO d125 mm. 700 1.034177313140248 500 1.117087224311945 440 0.0 0.0 750 720 690 760 Unelco B. T.

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
