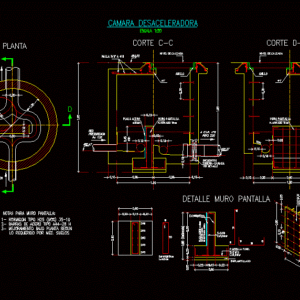

Camera Decelerating DWG Block for AutoCAD

Camera Decelerating DWG Block for AutoCAD

Decelerating Camera encounter pressurized sewage system with gravitational sewage system. Use for sewerage.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Min, Min, Tip, Tip, Concrete type, Steel type bars, Improvement under plant according to, What is required by mec. Floors, Notes for wall screen:, Slowdown camera, scale, mesh, ring, cut, Road level, mesh, ring, Road level, Pressurized, Pead, C.i.p., net, Smoothed stucco, Min, Steel plate, He armed, Wall screen, He armed, Wall screen, Min, cut, plant, Pressurized, net, Pead, C.i.p., Only in face, Steel plate, Input water, Grille fund, Emplantillado, Tip, Tip, Anchor wall, Concreted, Installed during, Steel plate, Diamond by, Face in contact, With concrete, Detail wall screen, meeting, see detail

Raw text data extracted from CAD file:

0,15 0,10 0,15 0,15 0,65 0,65 0,15 0,15 1,30 1,65 0,20 min 0,15 0,15 0,05 0,15 0,15 0,35 0,60 0,35 0,15 0,45 min 1,95 1,30 d=1,30 d=0,60 0,60 0,15 0,30 0,30 0,20 0,23 0,15 0,22 0,60 0,60 0,60 0,20 0,05 0,85 (Estimado) 0,22 0,15 0,23 0,60 0,60 0,05 0,10 tip 0,60 0,05 0,10 tip 1- HORMIGON TIPO H25 (90%) 35-10 2- BARRAS DE ACERO TIPO A44-28 H 3- MEJORAMIENTO BAJO PLANTA SEGUN LO REQUERIDO POR MEC. SUELOS NOTAS PARA MURO PANTALLA: CAMARA DESACELERADORA ESCALA 1:20 MALLA 3/8" A d10 ANILLO CORTE C-C d1" NIVEL DE CALZADA MALLA 3/8" A d10 ANILLO d1" NIVEL DE CALZADA Ac 100 PRESURIZADA PEAD 200 A C.I.P. Nº2 5 5 5 5 5 5 5 5 5 462,47 462,37 464,02 RED 5 e=1cm. ESTUCO ALISADO <> min e=6mm PLACA ACERO H.ARMADO 15cm MURO PANTALLA H.ARMADO 15cm MURO PANTALLA 5 20% 20% 5 5 5 5 5 5 5 5 <> min 5 5 D D CORTE D-D PLANTA C C d=<> d=<> Ac 100 PRESURIZADA RED PEAD 200 A C.I.P. Nº2 5 5 5 5 5 5 5 0,22 5 5 2d8 2d8 2d8 2d8 2d8 5 10 55 Estd8@15cm L=140cm SOLO EN CARA PLACA ACERO e=6mm DE ENTRADA AGUA Estd8@15cm 5+5d8 L=1,00mt 15 10 75 5 5 5 <> (Estimado) 5 5 5 5 PARRILLA FUND. 5+5 d 8 L=0,80mt 15 15 50 EMPLANTILLADO 0,60 0,05 0,10 tip 0,60 0,05 0,10 tip ANCLAJE A MURO 6x6 d6mm L=10cm HORMIGONADO INSTALADO DURANTE PLACA ACERO 6mm DIAMANTADA POR CARA EN CONTACTO CON HORMIGON DETALLE MURO PANTALLA TUBERIA-CAMARA ENCUENTRO VER DETALLE

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)

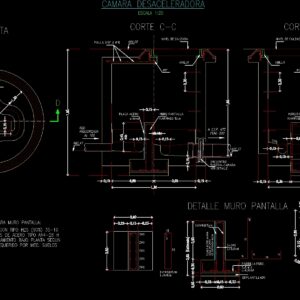

Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, camera, DWG, einrichtungen, encounter, facilities, gas, gesundheit, health, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, sewage, sewerage, system, wasser bestimmung, waste, water
