Castle Union DWG Detail for AutoCAD

Castle Union DWG Detail for AutoCAD

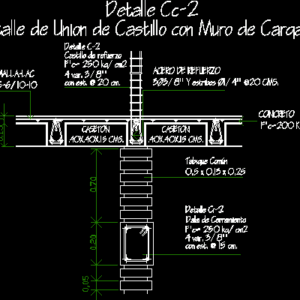

Detail castle union with wall of charge – Detail with enclosed measures

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

detail, detail of union of castle with loading wall, cms., cassette, detail, var., with est. cm., reinforcement castle, reinforcing steel stirrups cms., cms., cassette, var., with est. cm., closing dala, detail, common partition

Raw text data extracted from CAD file:

\A1;0.05 \A1;0.20 Detalle Cc-2 Detalle de Union de Castillo con Muro de Carga \A1;MALLA-LAC 6-6/10-10 \A1;0.15 0.20 5 .40X.40X.15 CMS. CASETON Detalle C-2 4 var. 3/8'' con est. @ 20 cm. Castillo de refuerzo F'c= 250 kg/cm2 ACERO DE REFUERZO 3Ø3/8" Y estribos Ø1/4" @20 CMS. \A1;CONCRETO F'c=200 KG/CM2 .40X.40X.15 CMS. CASETON 0.70 0.5 x 0.13 x 0.25 0,05 0.20 4 var. 3/8'' con est. @ 15 cm. F'c= 250 kg/cm2 Dala de Cerramiento Detalle Cr-2 Tabique Común

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, béton armé, castle, charge, concrete, DETAIL, DWG, enclosed, formwork, Measures, reinforced concrete, schalung, stahlbeton, union, wall
