Catchment Health Mark DWG Block for AutoCAD

Catchment Health Mark DWG Block for AutoCAD

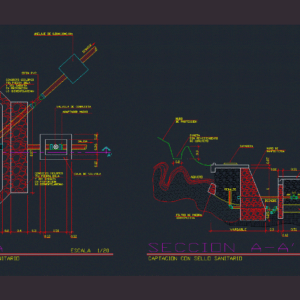

Is a drawing of a typical catchment for Drinking Water; Comprising ground and profile with their descriptions and information necessary .

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

drain, variable, anchor, sifon pvc, overflow tube, cover projection, sieve-protected input, gate valve, male adapter, departure, scale, collection with sanitary seal, valve box, concrete cyclopee stone ball sabieta in proportion, scale, collection with sanitary seal, variable, drain, departure, bed of sand, masonry wall, rebalse, hole, overlay filter stone, concrete, front, gutter with concrete coating, protection wall, masonry wall

Raw text data extracted from CAD file:

DESAGUE 0.06 0.04 0.61 0.2 0.4 0.3 0.12 0.51 0.12 0.2 0.2 1 2.17 0.12 0.36 0.12 0.2 0.3 1 0.07 0.25 VARIABLE 0.3 0.12 0.51 0.12 0.2 0.6 0.2 0.12 0.51 0.12 AM AM VC ANCLAJE DE 0.30*0.30*0.40m SIFON PVC TUBO DE REBALSE PROYECCION DE TAPADERA ENTRADA PROTEGIDA CON COLADOR (PICHACHA) VALVULA DE COMPUERTA ADAPTADOR MACHO SALIDA 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 \W1.6;PLANTA ESCALA 1/20 CAPTACION CON SELLO SANITARIO CAJA DE VALVULA CONCRETO CICLOPEO 70% PIEDRA BOLA Y 30% SABIETA EN PROPORCION 1:3 (CEMENTO,ARENA) CONCRETO CICLOPEO 70% PIEDRA BOLA Y 30% SABIETA EN PROPORCION 1:3 (CEMENTO,ARENA) A A' \W1.6;SECCION A-A\W1;' ESCALA 1/20 CAPTACION CON SELLO SANITARIO 5 5 5 5 5 VARIABLE 5 5 5 5 5 5 5 5 5 5 DESAGUE SALIDA LECHO DE ARENA MURO DE MAMPOSTERIA AM AM VC REBALSE AGUJERO FILTRO DE PIEDRA SOBREPUESTA CONCRETO TAPADERA CUNETA CON REVESTIMIENTO DE CONCRETO MURO DE PROTECCION MURO DE MAMPOSTERIA

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Masonry
Measurement Units
Footprint Area
Building Features
Tags	abwasserkanal, autocad, banhos, block, casa de banho, catchment, comprising, descriptions, drawing, drinking, DWG, fosse septique, ground, health, mark, mictório, plumbing, profile, sanitär, Sanitary, sewer, toilet, toilette, toilettes, typical, urinal, urinoir, wasser klosett, water, WC
