CCTV Installation Detail Drawing for Healthcare Security System

CCTV System Installation Details

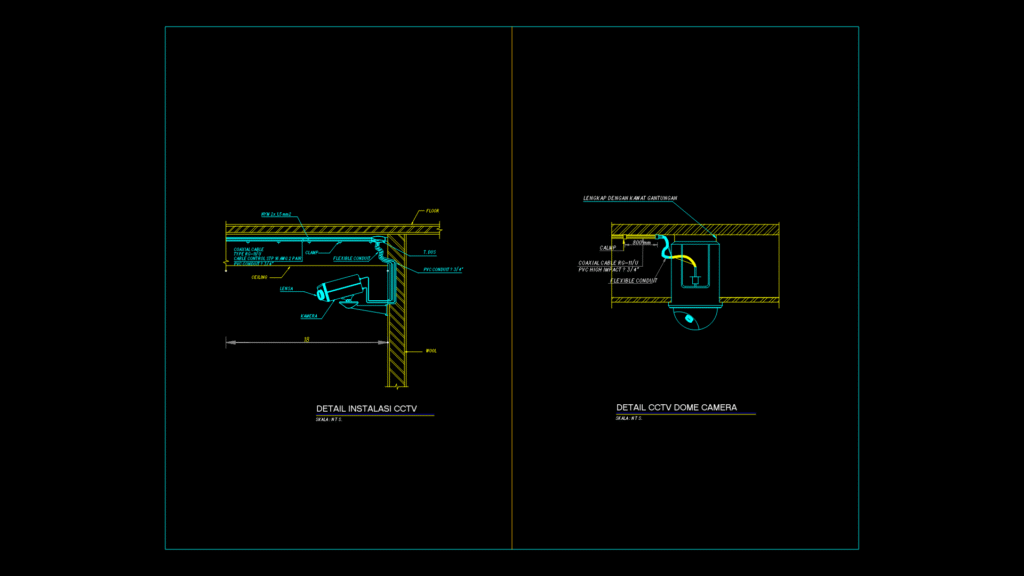

This technical drawing provides detailed specifications for CCTV installation components for the Hermina Hospital in Karawang. The drawing contains two primary sections:

1. CCTV Wall Installation Detail:
– Utilizes RG-11/U coaxial cable for video transmission
– Features STP 16 AWG 2-pair cable for control functions
– Includes PVC high-impact conduit (¾” diameter) for cable protection
– Specifies flexible conduit at camera connection points
– Shows proper mounting clamp configuration
– Provides T-junction detail with necessary clearances

2. Dome Camera Installation Detail:
– Ceiling-mounted configuration with concealed cabling
– Includes lens assembly and mounting hardware specifications
– Features flexible conduit transition from rigid PVC
– Utilizes NYM 2×1.5 mm² power cabling
– Requires proper support structure with suspension wire

The installation details are part of a comprehensive security system for healthcare facilities, with integration into the building’s electronic security infrastructure. Note that proper installation requires adherence to conduit bending radius limitations to maintain signal integrity.
