Centrifugal Pump DWG Block for AutoCAD

Centrifugal Pump DWG Block for AutoCAD

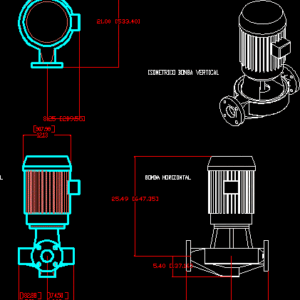

Centrifugal pump

Drawing labels, details, and other text information extracted from the CAD file:

series, notes:, guard is supplied, of should be used., dimensions shown in inches, exact installation data please write factory, for certified dimensions., armstrong, bomba vertical, bomba horizontal, isometrico bomba vertical, bomba horizontal

Raw text data extracted from CAD file:

SERIES 4380 NOTES: -Coupling Guard (Not Shown) is supplied -Tolerance of ±0.125"[3mm] should be used. -Pump dimensions shown in inches [mm]. -For exact installation data please write factory for certified dimensions. 12.13 307.98 7.20 182.88 6.87 174.50 21.00 533.40 8.25 209.55 ARMSTRONG 25.49 647.35 5.40 137.16 11.50 292.10 9.50 241.30 5 5 5 5 5 5 5 5 5 BOMBA VERTICAL BOMBA HORIZONTAL ISOMETRICO BOMBA VERTICAL BOMBA HORIZONTAL

Language	English
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, bomba, bomba de água, centrifugal, DWG, pipe, pompe, pompe à eau, pump, pumpe, rohr, tubulação, tuyaux, wasserpumpe, water pump
