Channel Rainwater DWG Block for AutoCAD

Channel Rainwater DWG Block for AutoCAD

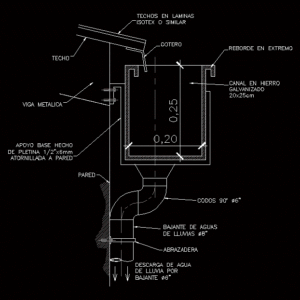

Channel rectangular 20x25cm. for drains on roofs, to rainwater, with downpipe

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Rainwater drain, Channel in galvanized iron, Base support made of bolted wall plate, wall, ceiling, Ceilings on sheets isotex similar, clamp, elbows, Metal beam, Discharge of rainwater by downpour, End flange, Dropper

Raw text data extracted from CAD file:

0,25 0,20 BAJANTE DE AGUAS DE LLUVIAS d8" CANAL EN HIERRO GALVANIZADO 20x25cm APOYO BASE HECHO DE PLETINA 1/2"x6mm ATORNILLADA A PARED PARED TECHO TECHOS EN LAMINAS ISOTEX O SIMILAR ABRAZADERA CODOS 90° d6" VIGA METALICA DESCARGA DE AGUA DE LLUVIA POR BAJANTE d6" REBORDE EN EXTREMO GOTERO 5 5

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, channel, downpipe, drains, DWG, einrichtungen, facilities, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, rainwater, rectangular, roofs, wasser bestimmung, water, xcm
