Chimney Section – Fireplace Stove DWG Section for AutoCAD

Chimney Section – Fireplace Stove DWG Section for AutoCAD

Sections – Execution processes

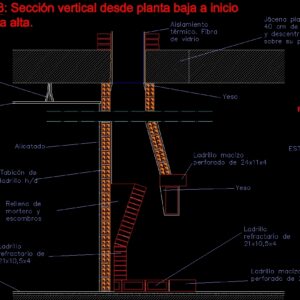

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Refractory, Solid perforated, Vertical section from ground floor top floor., thermal. fiberglass, Flat cm wide off center on its pillar, Plaster ceiling, Brick, Of mortar rubble, Refractory, Solid perforated

Raw text data extracted from CAD file:

\fStylus BT|b0|i0|c0|p34;Ladrillo refractario de 21x10,5x4 \fStylus BT|b0|i0|c0|p34;Yeso \fStylus BT|b0|i0|c0|p34;Ladrillo macizo perforado de 24x11x4 \fArial|b0|i0|c0|p34;\LDetalle 3\l: Sección vertical desde planta baja a inicio de planta alta. \fStylus BT|b0|i0|c0|p34;Aislamiento térmico. Fibra de vidrio \fStylus BT|b0|i0|c0|p34;Jácena plana de 40 cm de ancho y descentrada sobre su pilar \fStylus BT|b0|i0|c0|p34;Garrotera \fStylus BT|b0|i0|c0|p34;Falso techo de escayola \fStylus BT|b0|i0|c0|p34;COCINA \fStylus BT|b0|i0|c0|p34;ESTAR \fStylus BT|b0|i0|c0|p34;Alicatado \fStylus BT|b0|i0|c0|p34;Tabicón de ladrillo h/d \fStylus BT|b0|i0|c0|p34;Relleno de mortero y escombros \fStylus BT|b0|i0|c0|p34;Ladrillo refractario de 21x10,5x4 \fStylus BT|b0|i0|c0|p34;Solería \fStylus BT|b0|i0|c0|p34;Yeso \fStylus BT|b0|i0|c0|p34;Ladrillo macizo perforado de 24x11x4 \fArial|b0|i0|c0|p34;Escala 1:10

Language	Spanish
Drawing Type	Section
Category	Climate Conditioning
Additional Screenshots
File Type	dwg
Materials	Glass
Measurement Units
Footprint Area
Building Features	Fireplace
Tags	autocad, boiler, chaudière, chimney, DWG, execution, fireplace, fireplace stoves, fireplaces, kamin ofen, kessel, open fire stove, processes, section, sections, stove
