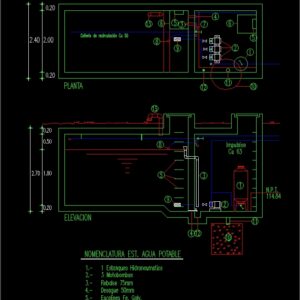

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

level sensor, drainage channel, pvc ventilation, floor sink, absorbent well, sucker, access hatch, nomenclature est. drinking water, elevation, filter type online, drain, rebalse, scales faith galv., motor pumps, hydropneumatic tanks, impulsion, n.p.t., detail pond accumulation drinking water, Recirculation pipe cu, plant

Raw text data extracted from CAD file:

13 8.- Sensor de Nivel 12.- Canaleta de desague 13.- Ventilacion PVC 110 11.- Pileta de piso 10.- Pozo Absorbente D=1.00m. 9.- Chupador 6.- Escotilla de Acceso 0.80 x 0.80 NOMENCLATURA EST. AGUA POTABLE 8 5 9 0.20 0.50 1.80 2.70 ELEVACION 0.20 7.- Filtro en linea tipo " Y " 4.- Desague 50mm 3.- Rebalse 75mm 5.- Escalines Fe. Galv. 2.- 3 Motobombas 1.- 1 Estanques Hidroneumatico Cu 63 Impulsion 3 1 114.84 N.P.T. 2 12 4 10 11 DETALLE ESTANQUE ACUMULACION AGUA POTABLE 4.00 6.60 13 6 8 0.20 0.20 2.00 2.40 Cañeria de recirculación Cu 50 0.20 PLANTA 0.20 0.20 2.00 Sin/Escala 4 3 5 6 7 5 2 9 1 11 10 12
