Clarifier Of Treatment DWG Block for AutoCAD

Clarifier Of Treatment DWG Block for AutoCAD

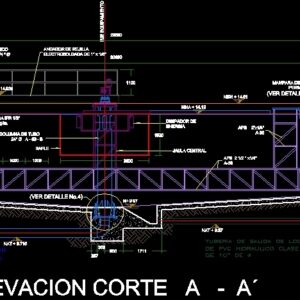

Clarifier system waste water treatment forthe separation oif sludge by means of circular rotation of drag .

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

north, Galvanized mechanical tube railing, Electro-welded grid walker, Power dissipator, Tube column, Ipr beam bridge, Box of cream ac.inox., Nct, Nsm, Nsc, Npt, Fncl, Nct, Nos ac, After, From carcamo recirculacion, Nat, detail, Baffle, Central cage, Nat, Nos, Nma, After, Npt, Nsm, Nsc, Nsm, Perimeter cream screen, detail, Cut elevation, Axis equipment, Feed pipe, Of pvc sludge hydr., Of, Sludge recirculation tank, Sludge outlet pipe, Of pvc hydraulic class, Of, Outlet pipe for treated water, Of pvc hydraulic class, Of, Functional cut, Clarifier

Raw text data extracted from CAD file:

NORTE 1000 1711 800 333 267 1100 BARANDAL DE TUBO MECANICO GALVANIZADO CED- 30 1 1/4 " d ANDADOR DE REJILLA ELECTROSOLDADA DE 1" x 1/8" DISIPADOR DE ENERGIA 3900 1000 1000 1000 1000 1000 COLUMNA DE TUBO \W5.15464; 24" Ø A - 53 - B PUENTE DE VIGA IPR 1/2" x 6 1/2" x 44.70 kg/m. CAJA DE NATAS AC.INOX. T-304 NCT + 12.905 NSM + 14.09 NSC + 13.59 NPT + 12.455 A FNCL - 410 NCT + 11.905 NS - 6"- 405 - AC APS - 2"x1/4" A-36 DE CARCAMO RECIRCULACION 2 NAT + 8.715 (VER DETALLE No.4) BAFLE JAULA CENTRAL NAT + 9.27 N+ 10.59 1820 NSA + 14.925 500 300 200 500 300 200 NMA + 14.13 APS 2 1/2 " x1/4" A-36 APS 2"x1/4" A-36 NPT + 12.805 NSM + 14.09 NSC + 12.23 NSM + 14.61 MAMPARA DE NATAS PERIMETRAL (VER DETALLE No.3) ELEVACION CORTE A - A´ N+ 9.97 EJE EQUIPAMIENTO 20600 22600 4300 TUBERIA DE ALIMENTACION DE LODOS DE PVC HIDR. DE 14" DE d A CARCAMO DE RECIRCULACION DE LODOS TUBERIA DE SALIDA DE LODOS DE PVC HIDRAULICO CLASE 7 DE 10" DE d TUBERIA DE SALIDA DE AGUAS TRATADAS DE PVC HIDRAULICO CLASE 7 DE 10" DE d CORTE - FUNCIONAL CLARIFICADOR
